> Mowers > Petrol > Without drive up to 42 cm > series 6 > 6.42 BK > Handlebar compl.

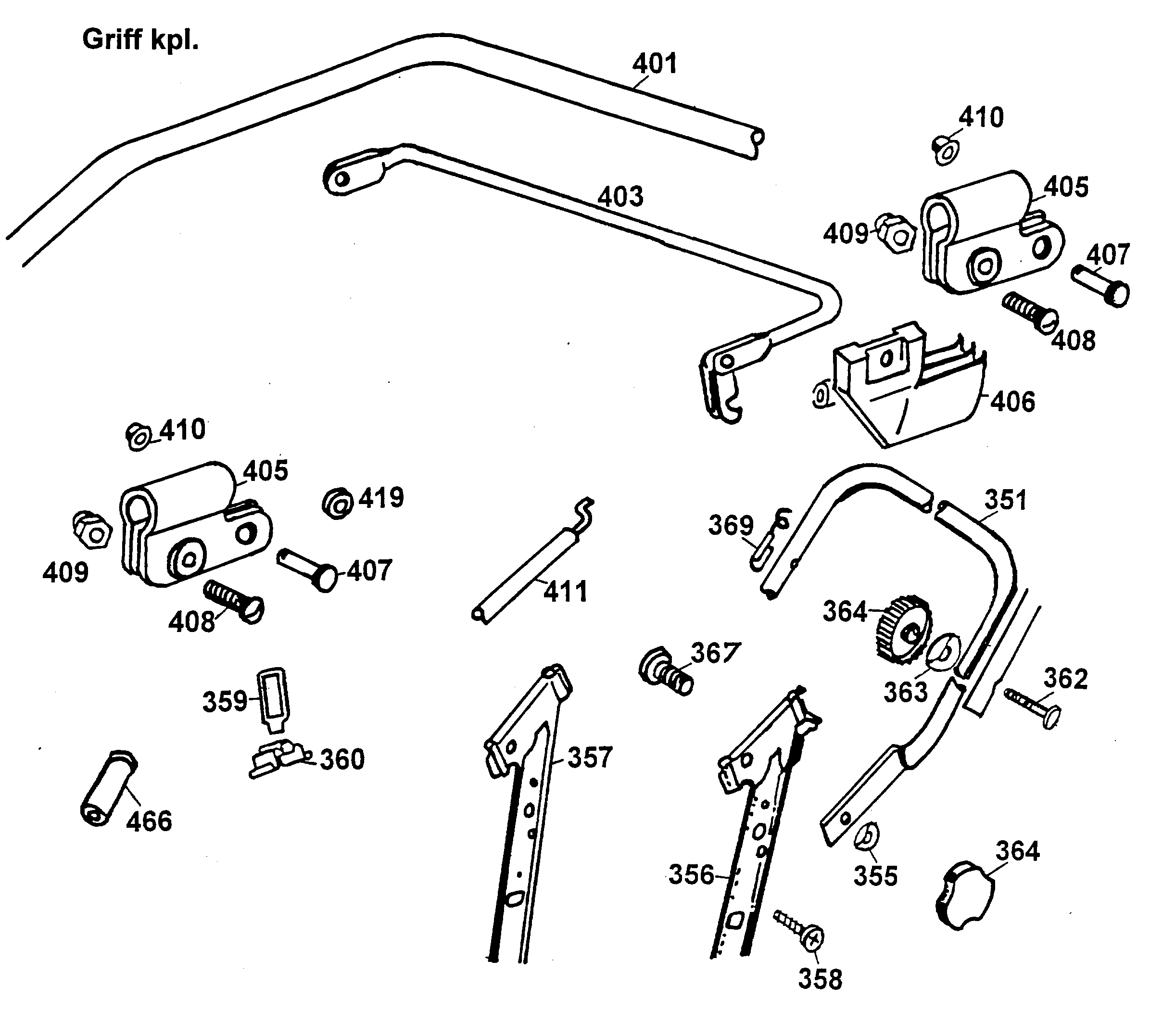

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
351Lower Handlebar4850 120
355Washer0017 484
356Retainer4740 101
357Retainer4740 102
358Screw0012 890
359Strap6340 314
360Clip6340 312
362Screw0013 525
363Hollow Disk0017 275
364Handwheel4936 022
367Screw4760 102
369Guide-Rope6340 014
401Upper Handlebar4820 023
401Upper Handlebar4720 023
403Brake Lever4760 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
409Nut0016 641
411Bowden Wire Brake4742 058
411Bowden Wire Brake4765 058
419Distance Disc4240 205
466Closing Cap6340 125
