series 6
>
6.42 BK
>
Motor, Blade, Shift case

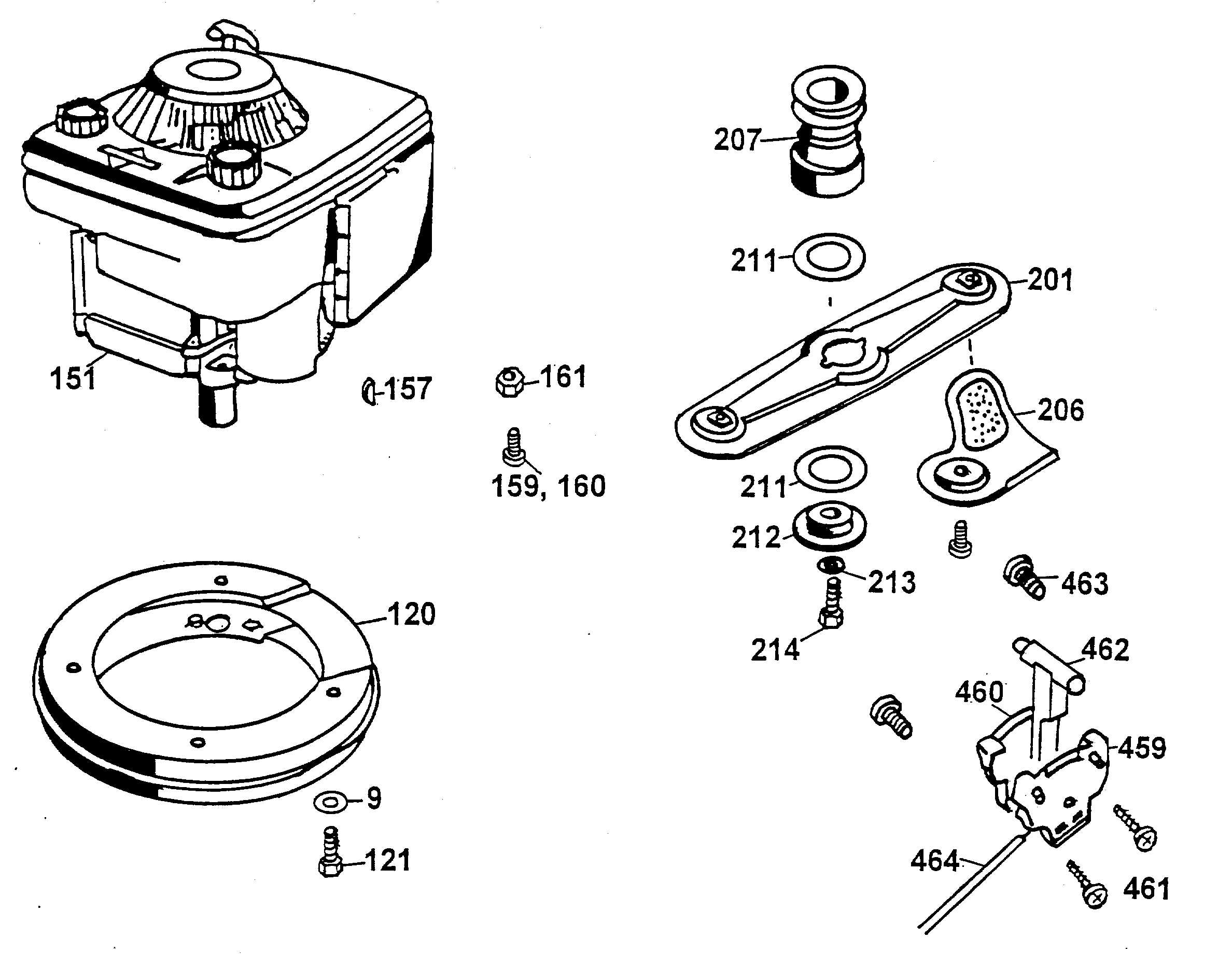

Spare Parts Lists for Wolf Mowers Motor, Blade, Shift case
pos.
decription
spare part number
9
Washer
0017 111
120
Ring
6340 022
121
Hex Screw M8X30 Din 933 8.8
0010 399
151
Motor "Quantum 50 Xte"
2069 070
151
Motor
2038 000
157
Key
0029 130
159
Screw M8X60
0011 353
160
Screw
0011 351
161
Hex. Nut
0016 312
201
Blade Compl. W. Repl. Blades
4740 066
206
Replacement Blade Vi 42/52
6340 078
207
Coupling Disk
4840 401
211
Clutch facing
4111 403
212
Coupling Disk
4840 402
213
Friction Washer
0017 105
214
Screw
0010 268
459
Case left
6450 326
460
Case, Right
6450 325
461
Screw
0012 626
462
Adjusting Lever
4722 040
462
Adjusting lever compl.
6450 040
463
Screw
0012 886
464
Bowden wire
6650 054
464
Bowden wire
4740 059
***
Bowden wire
4722 045
***
Bowden Wire With Case
4728 045
***
Poly bag with operator manual
4727 025
***
Poly bag with operator manual
4728 025
***
Instruction Manual
0054 104
***
Collector Box
4960 050
