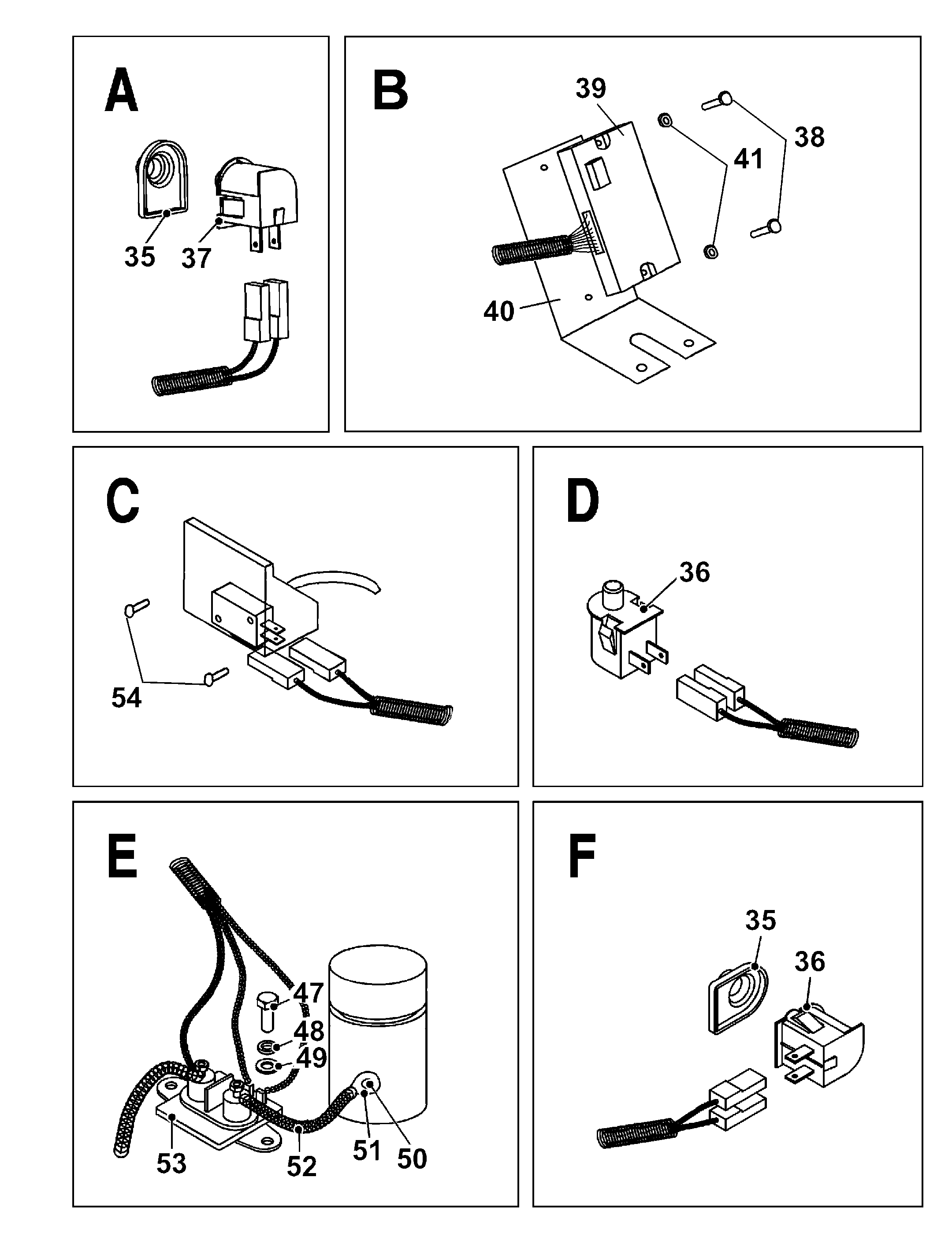

Spare Parts Lists for Wolf Ride-on Mowers Electrical switches 1

pos.	decription	spare part number
35	Protective Cover	6205 349
36	Switch Delta 6440-04	6205 055
37	Switch Delta 6440-53	6200 055
38	Screw 2.9X13 Din 931 8.8	6200 135
39	Control Modulus Hydro 01	6200 070
40	Holding Sheet Metal Control Modulus	6200 127
41	Washer 3 Din 125 A	6200 136
47	Screw M6X12 Din 933 8.8	0010 383
48	Washer Spring	0017 908
49	Washer	0017 121
50	Nut W 1/4" - 20	6205 137
51	Rubber Washer	6205 311
52	El. Starter Lead 10	6205 491
53	Solenoid 94255/12V - 150A	6205 149
54	Self Drilling Screw 4,2X13-Din 7504K Ecodrill	0015 821
