Spare Parts Lists for Wolf Ride-on Mowers Operation transmission drive

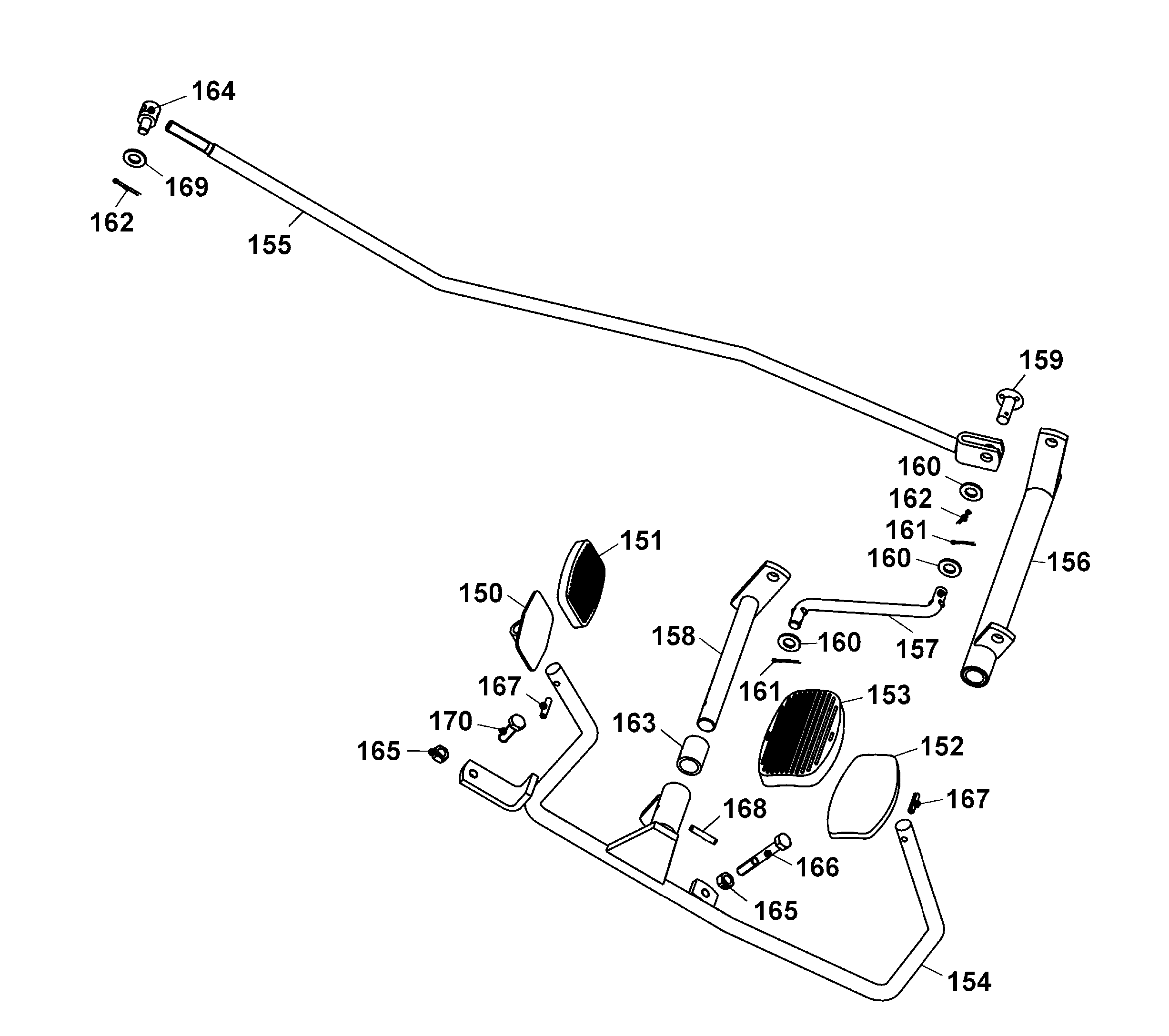

spare parts list


pos.decriptionspare part number
150Travel Pedal, Rear6205 527
151Pedal Pad6205 306
152Travel Pedal, Front6205 528
153Pedal Pad6205 312
154Travel Pad Weldment6205 018
155Connecting Rod, Middle6205 526
156Diagonal Shaft6205 530
157Link-Counterweight6205 498
158Diagonal Shaft6205 529
159Bolt6205 497
160Washer 10,5-Din 125A0017 124
161Cotter Pin 2X18 Din 946205 563
162Cotter Pin 2X186205 562
163Distance Ring6205 167
164Bolt6205 499
165Self Locking Nut M8 Din 985 Ci.80016 213
166Hex Screw M8X65 Din 931 8.8 - 20" Wheels0010 339
167Spring Pin 5X226205 566
168Spring Pin 5X26 Din 73466205 574
169Washer 9 Din 1266205 573
170Hex screw M8 x 25 DIN 933 8.80010 395
