> Ride-on Mowers > Trac > OHV 7 > Trac OHV 7 > Mower housing compl.

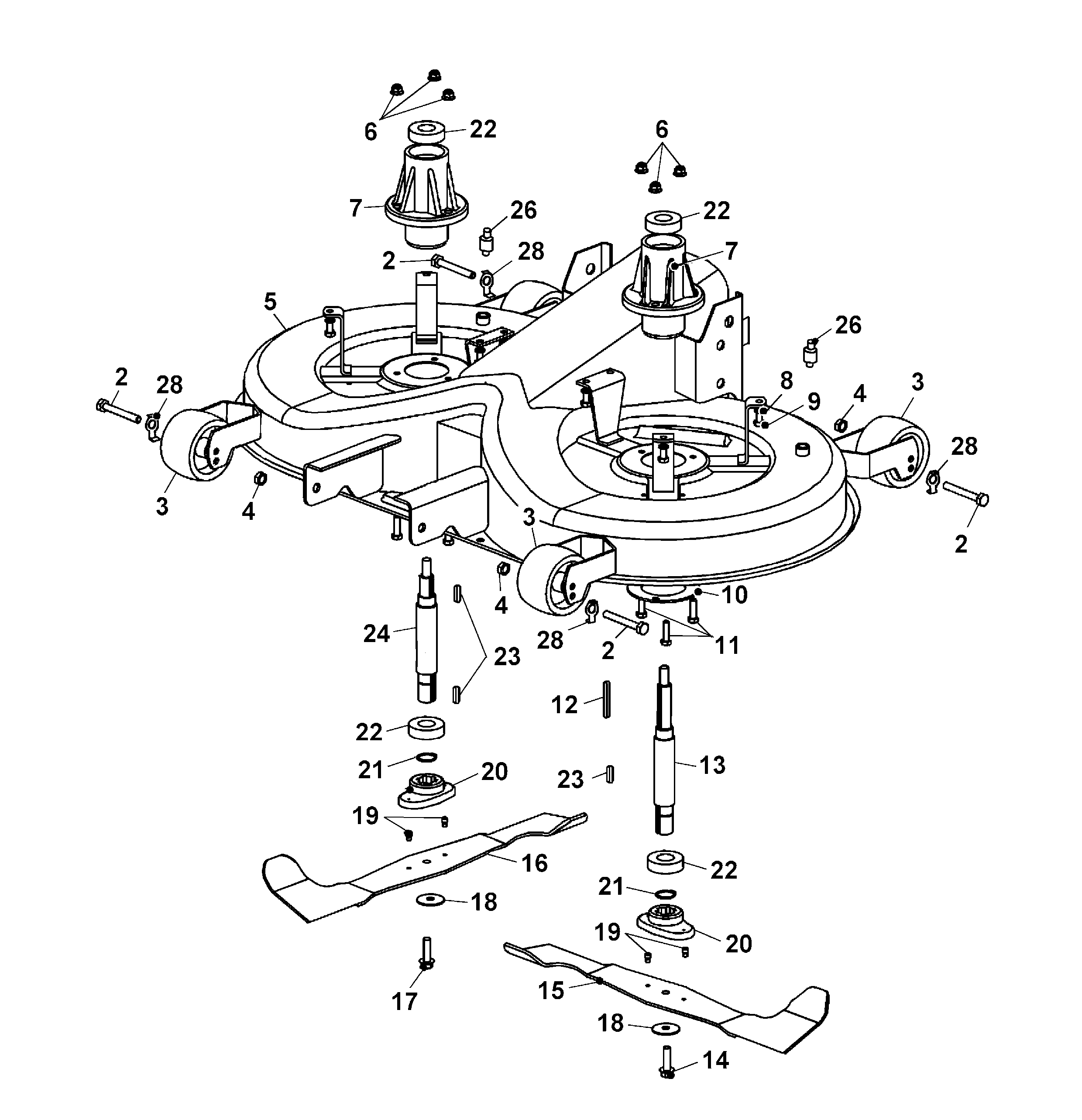

Spare Parts Lists for Wolf Ride-on Mowers Mower housing compl.




spare parts list


pos.decriptionspare part number
1Mower Deck Assy. Compl.6200 032
2Hex Screw M10X90 Din 931 8.86205 579
3Gauge Wheel6205 465
4Self-Locking Nut M10-Din 985 Cl.80016 316
5Mower Housing, Complete6205 033
6Nut0016 385
7Coupling6205 151
8Washer A 8,4 Din 1250017 123
9Hex Screw M8 X 20 Din 933 8.80010 402
10Ring Support6205 547
11Hex Flange Bolt M8X35 Din 6921 8.86205 581
12Key 6H 9X6X566205 108
13Blade Shaft, Left6205 485
14Hex Screw M10X1X356205 558
15Blade, Left6205 401
16Blade, Right6205 400
17Hex. Screw M 10X1X35 Left6205 128
18Belleville Washer 5808-147-1096205 549
19Breaking Pin6205 138
20Blade Adaptor6205 101
21Circlip0020 023
22Bearing 6205 A 2Rs0023 151
23Square Key 6X6X256205 554
24Blade Shaft, Right6205 484
26Plastic Connection6205 339
28Washer 10,5-Din 936200 131
