Spare Parts Lists for Wolf Mowers Exchange lead battery

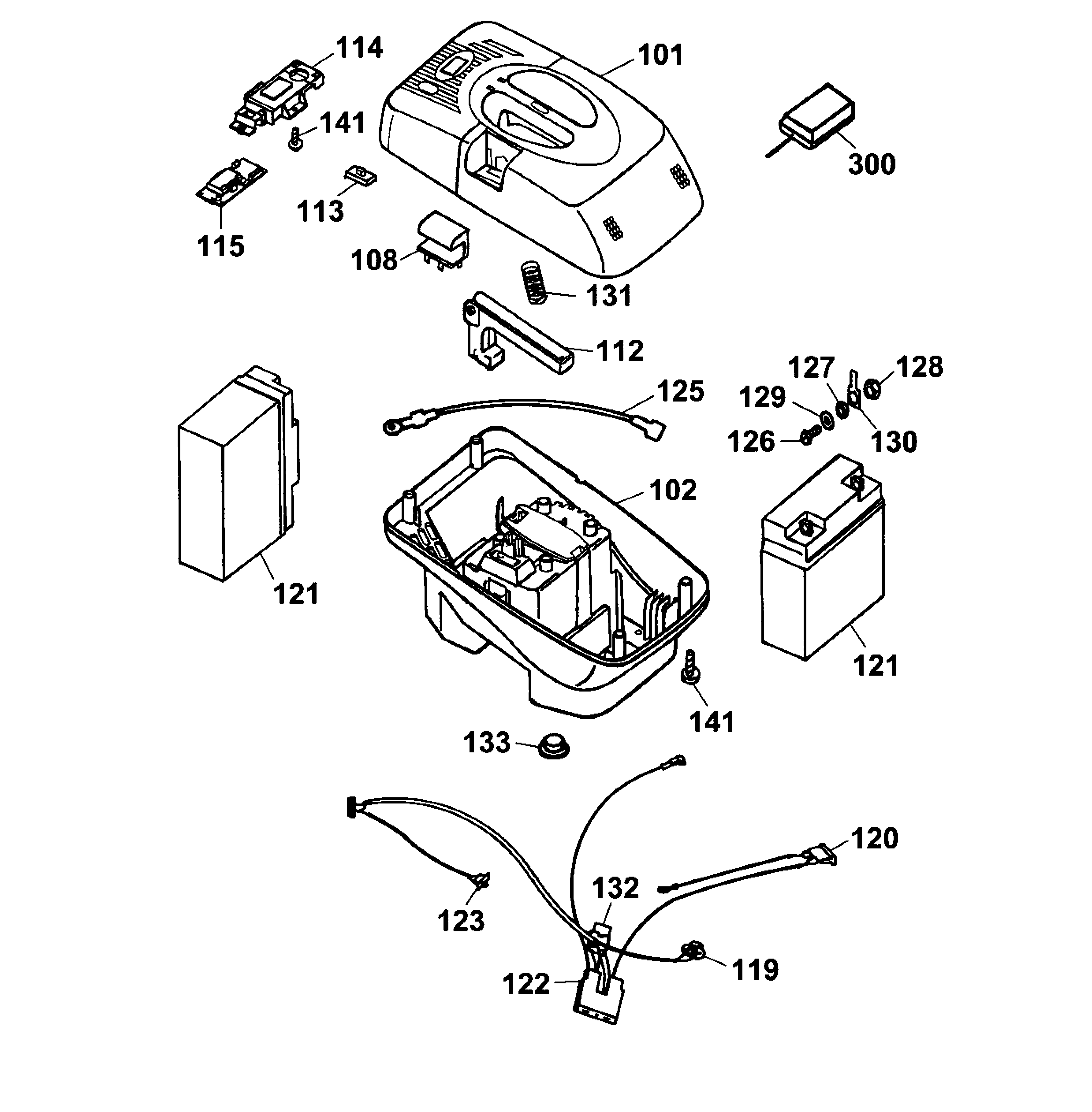

spare parts list


pos.decriptionspare part number
101Battery Cap Red4948 304
102Battery Case4332 305
108Connector4947 020
112Handle4947 306
113Switch Cap4947 316
114Indicator4947 314
115Electr. Fill Indicator4332 067
119Charging Bush4947 131
120Fuse 40 A4947 105
122Cable Harness4332 062
123Sliding Switch4947 056
125Cable Green4947 126
126Screw0012 863
127Washer0017 880
128Hex. Nut0016 310
129Washer0017 120
130Flat Plug4948 110
131Spring4740 207
132Fuse 2 A4332 105
133Plug4332 306
141Screw0012 630
300Boost Charger4948 060
***Exchange Battery Compl.4332 071
