> Mowers > Accu > Without drive > Concept > Concept 43 AC > Handlebar, Switch

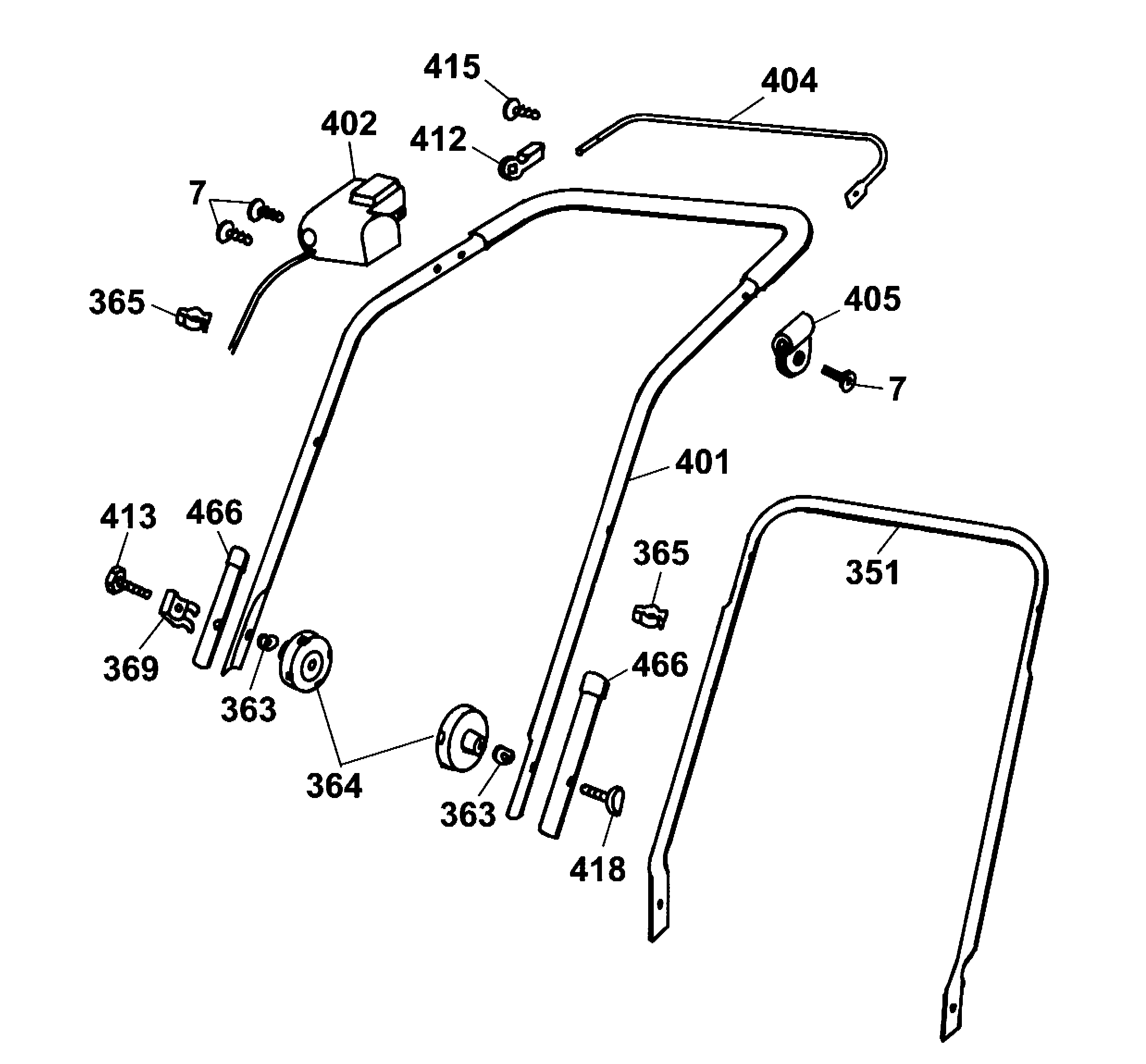

Spare Parts Lists for Wolf Mowers Handlebar, Switch


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
7Screw0012 625
spare parts list


pos.decriptionspare part number
351Lower Handlebar4317 120
363Hollow Disk0017 275
364Handwheel4936 022
365Cable Clamp4950 307
369bend protection4950 308
401Upper Handlebar4945 036
402Switch4947 051
404Bracket Bracket4317 014
405Clamp-Casing4935 105
412Bushing4940 105
413Screw0010 338
415Screw0015 820
418Connecting Screw4901 101
466Closing Cap6340 125
