Spare Parts Lists for Wolf Mowers Motor, Blade

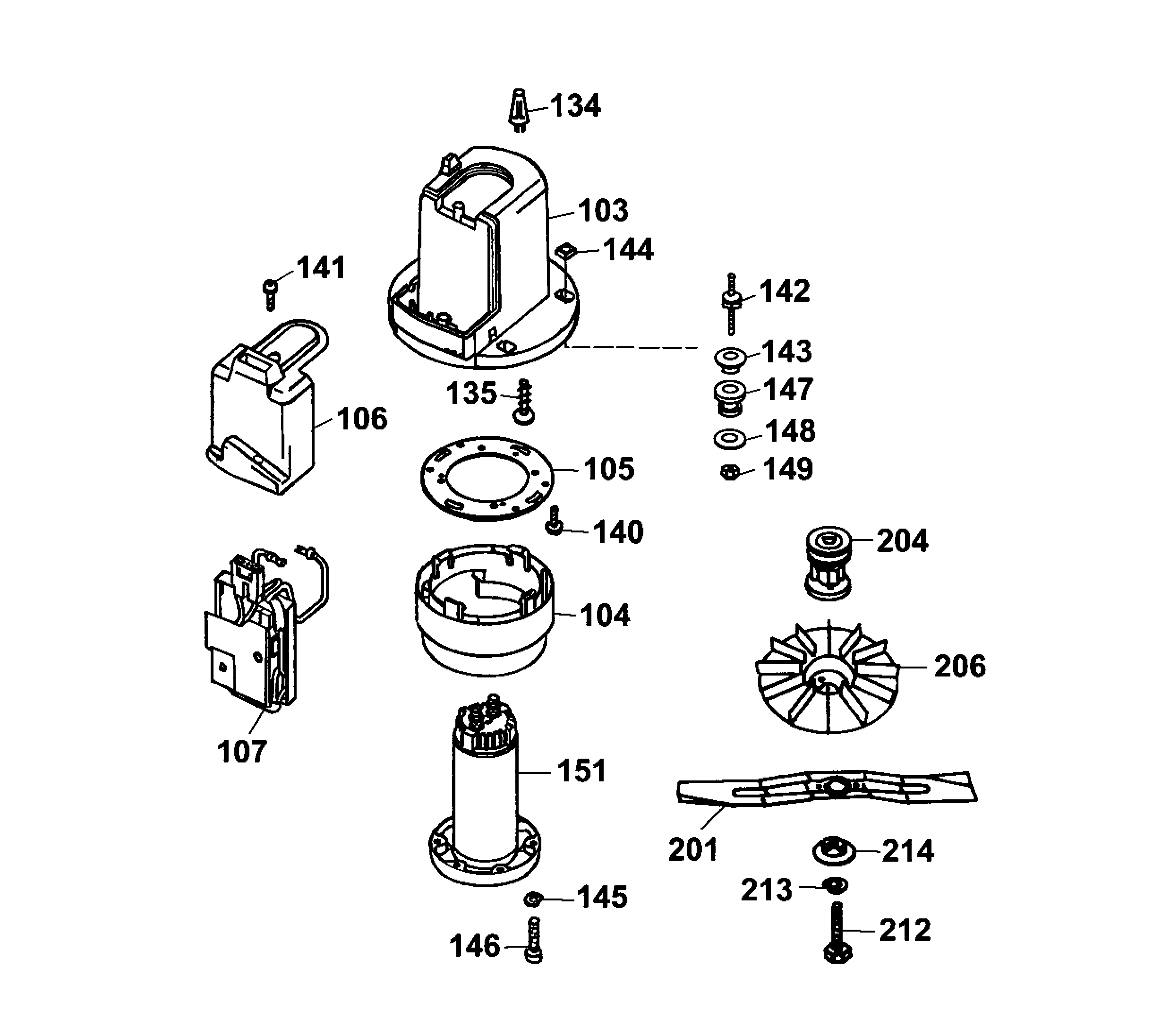

spare parts list


pos.decriptionspare part number
103Motor Holder4332 302
104Air-Conduction4332 111
105Motor Ring4947 303
106Cover For Electronic4947 307
107Motor Electronic4332 066
134Centering Cone4332 313
135Screw0012 885
140Screw0012 890
141Screw0012 630
142Stud Bolt4332 120
143Bush6450 138
144Nut0016 409
145Washer Spring0017 908
146Screw0012 610
147Rubber Buffer6450 319
148Washer0017 291
149Hex. Nut0016 312
151Motor1055 060
201Blade4332 400
204Driving Disk4942 402
206Aerator4942 300
212Hex. Screw0010 259
213Washer Spring0017 909
214Coupling Disk4333 401
