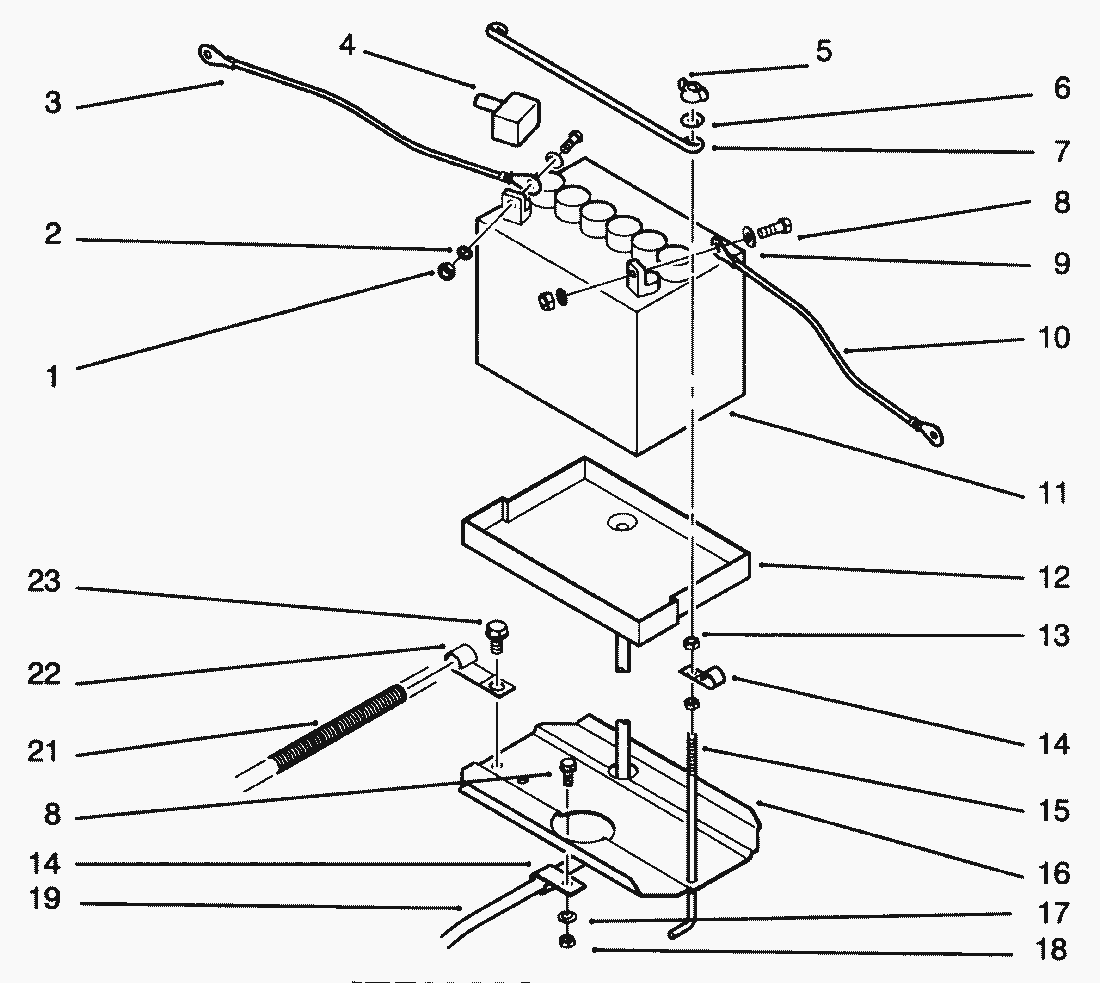

Spare Parts Lists for Toro Roth / TORO Battery Mount Assy.

pos.	decription	spare part number
1	Nut-Hex	3217-5
2	Lockwasher	920081
3	Wire-Solenoid/Starter	112757
4	Cover-Battery Terminal	109553
5	Nut-Wing	32103-22
6	Washer	3256-22
7	Hold-Down-Battery	117316
8	Capscrew	321-4
9	Washer	3256-22
10	Wire (10 Battery to Ground)	111078
11	Battery	115877
12	Tray-Battery	106948
13	Nut	915111
14	Clamp	105490
15	Hook	109547
16	Plate-Battery	78-6820
17	Washer	3256-22
18	MUTTER	3296-42
19	Tube-Drain, Battery	114720
21	Wire Harness	79-3570
22	Clip	8830
23	S.W. Form Screw	926720
