> Roth / TORO > Ride-On Mowers > Traktor > 246 HE > 309/72101 > 3900001 > Front Axle Assy.

Spare Parts Lists for Toro Roth / TORO Front Axle Assy.




pos.decriptionspare part number
78-1660
Steering Link Rod, R.H.78-8450
Steering Link Rod, L.H.78-8460

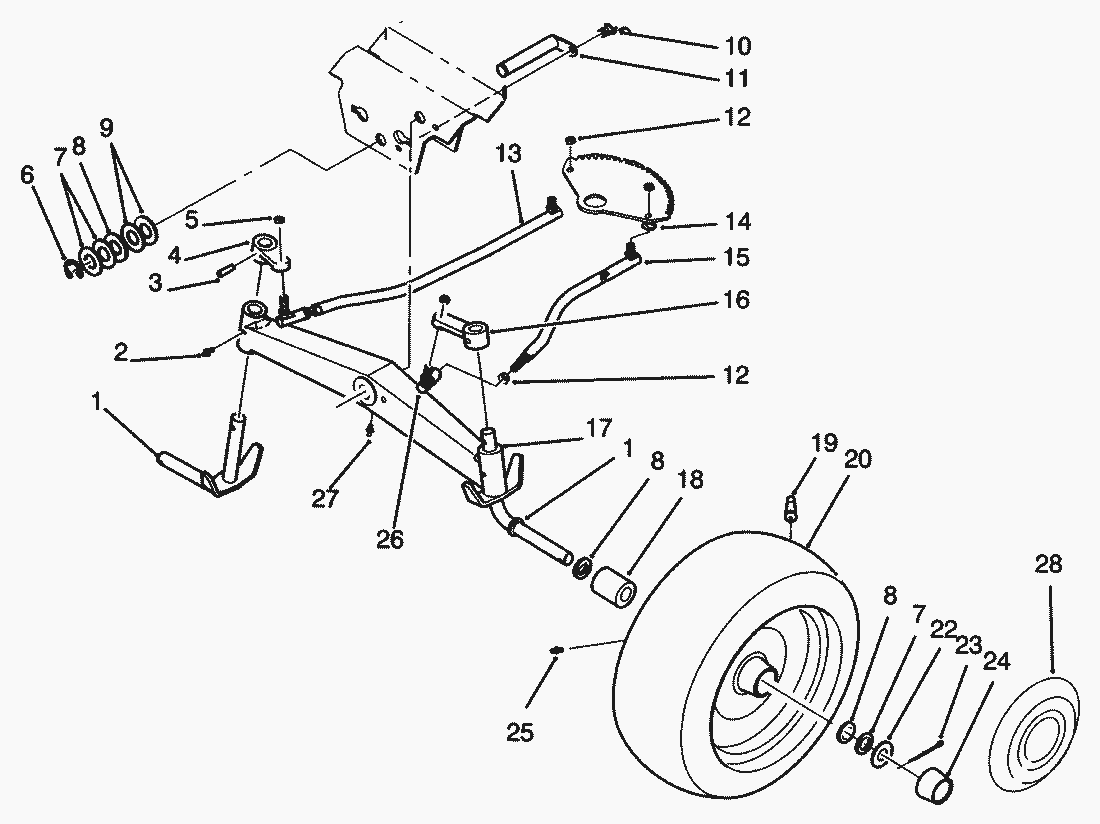

spare parts list


pos.decriptionspare part number
1Spindle-Assembly78-2601
2Grease Fitting302-5
3Pin-Roll933270
4Arm-Spindle, R.H.78-1940
5Nut915085
6Ring-Retaining5618
7Washer-Shim (.015) * Not Illustrated5210
8Washer-Shim (.050)1278
9Washer920232
10Screw926715
11Pin Assembly-Axle115484
12Nut-Lock915002
13Steering Link Rod, R.H.78-8450
14Washer920038
15Steering Link Rod, L.H.78-8460
16Arm-Spindle, L.H.78-1950
17Axle-Front78-7960
18Bearing-Wheel110513
19Valve Stem5108
20Tire-16 X 6.50-8117127
Service-Inner Tube Only105293
22Washer-Wheel111952
23Cotter Pin3272-17
24Cap-Hub111951
25Grease Fitting109500
26Ball Joint78-2900
27Fitting-Grease1481
28Hub Cap114427
