> Roth / TORO > Ride-On Mowers > Traktor > 246 HE > 309/72101 > 3900001 > Fender and Seat Assy.

Spare Parts Lists for Toro Roth / TORO Fender and Seat Assy.




pos.decriptionspare part number
92-6349

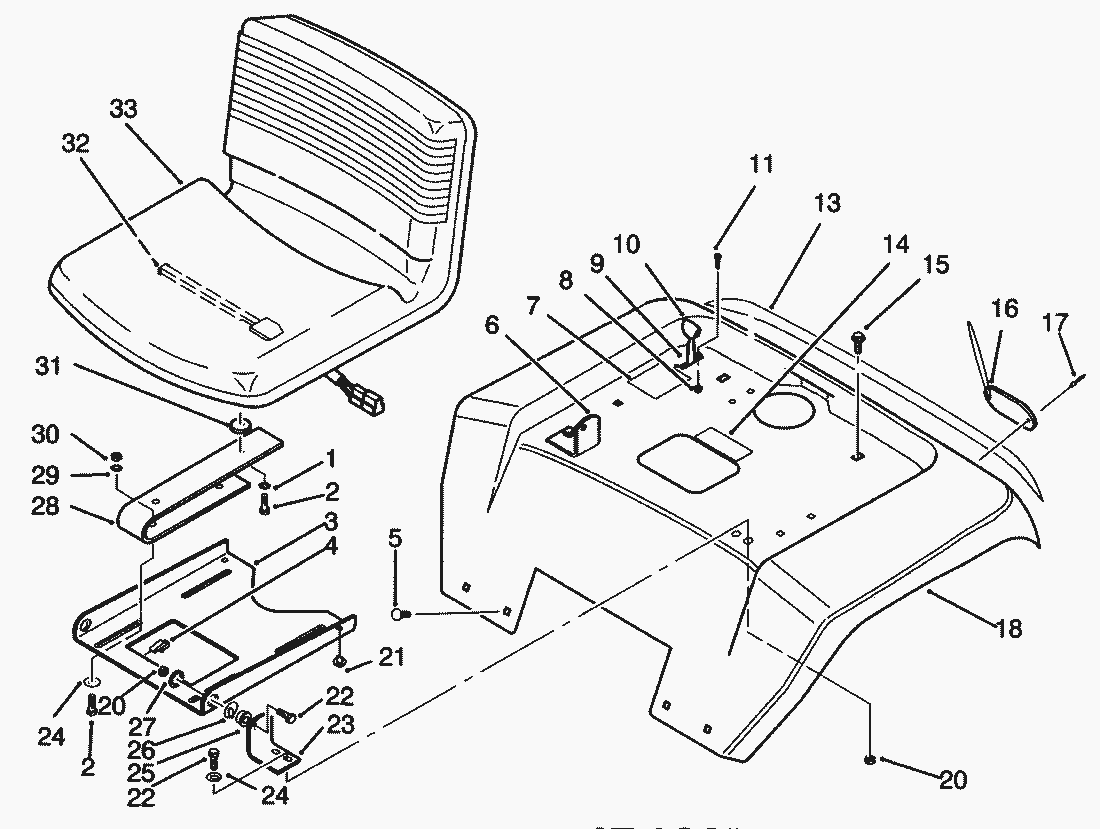

spare parts list


pos.decriptionspare part number
1Lockwasher920082
2Capscrew322-4
3Plate-Pivot, Seat78-2990
4Clip-J111392
5Screw-Carriage3230-23
6Bracket-Pivot, R.H.79-0950
7Decal-Hydro Push (212-H)114442
8Nut-Hex915740
9Control-Valve, Push116124
10Knob108917
11Screw78-8710
13Decal-Rear Fender117760
14Decal-Danger88-2790
15S.W. Form Screw926720
16Reflector108547
17Poprivet109193
20MUTTER3296-29
21Bumper103887
22Hex Hd. Capscrew322-5
23Bracket-Pivot, L.H.79-0970
24Washer3256-23
25Bushing105503
26Washer-Special920271
27Washer-Spring79-0420
28Spring-Seat110920
29Washer3256-23
30MUTTER3296-29
31Spacer-Nylon109989
32Switch-Seat38-1420
33Seat79-0670
Decal-Maintenance88-3200
