back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
246 HE
>
309/72101
>
3900001
>

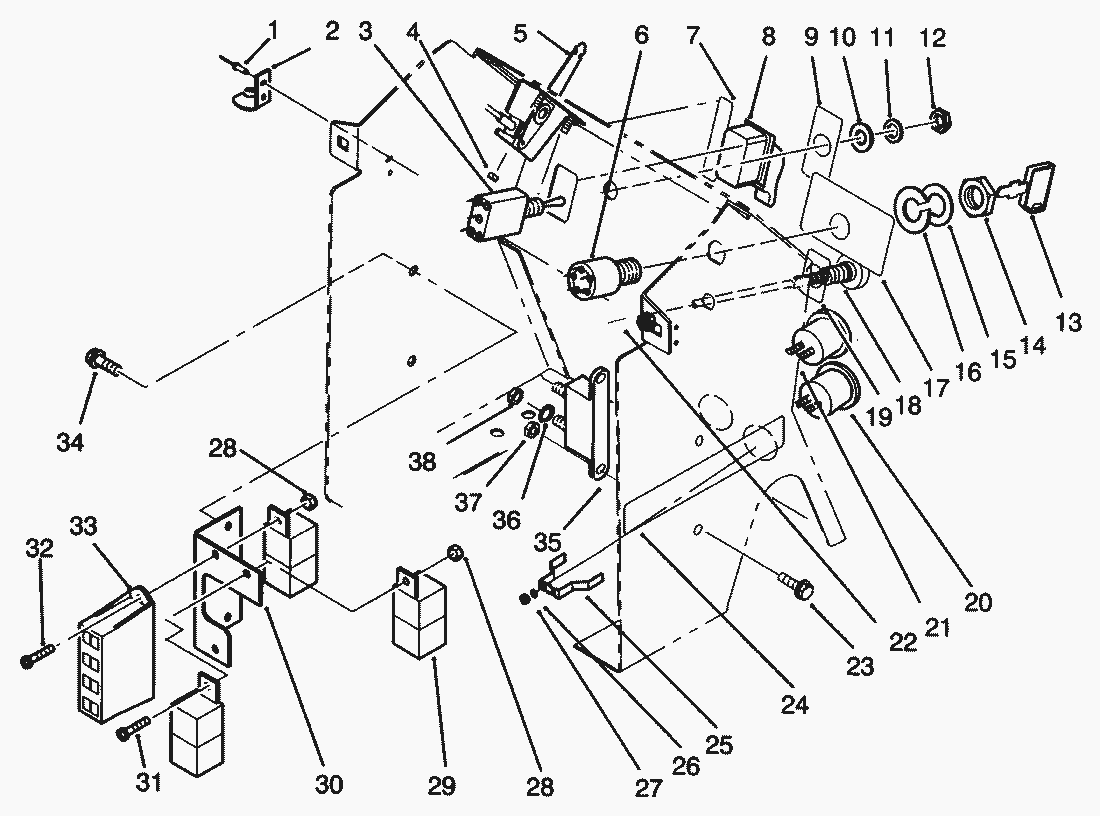

Dash Assy.
Spare Parts Lists for Toro Roth / TORO Dash Assy.
pos.
decription
spare part number
1
Rivet-Pop
117431
2
Keeper-Latch
117343
3
Switch-Light (Incl. Ref.
102138
4
Nut-Hex
915740
5
Control-Throttle
118450
6
Switch-Ignition (Incl. Ref.
116338
7
Decal-PTO Clutch
78-8440
8
Switch-PTO
78-3030
9
Decal-Lights
78-8490
10
Washer-Tab
102950
11
Washer-Special
9202594
12
Nut-Hex.
113179
13
Key-Switch
62-7770
14
Nut-Switch
101884
15
Washer-Special
920262
16
Washer-Lock
920160
17
Decal-Ignition
78-8480
18
Cable-Choke
79-5620
19
Decal-Choke
79-5420
20
Meter-Hour (Incl. Ref.
78-0021
21
Meter-Volt
79-0060
22
Jam Nut
3220-3
23
Hex Flange Capscrew
3234-13
24
Decal-Hydro (212-H)
117511
25
Clamp-Hourmeter
78-3320
26
Washer-Lock
3253-15
27
Nut
915464
28
Nut-Hex
915740
29
Relay
116397
30
Bracket-Holder, Fuse
79-5030
31
Screw-Pan Hd.
3250-14
32
Screw
78-8710
33
Holder-Fuse
120930
34
Screw-Hex. Washer Hd.
79-1590
35
Solenoid-Starter
47-1910
36
Lockwasher
3253-3
37
Nut-Hex
3217-5
38
Jam Nut
3218-1
