Spare Parts Lists for Toro Roth / TORO Hydro Transaxle Assy.

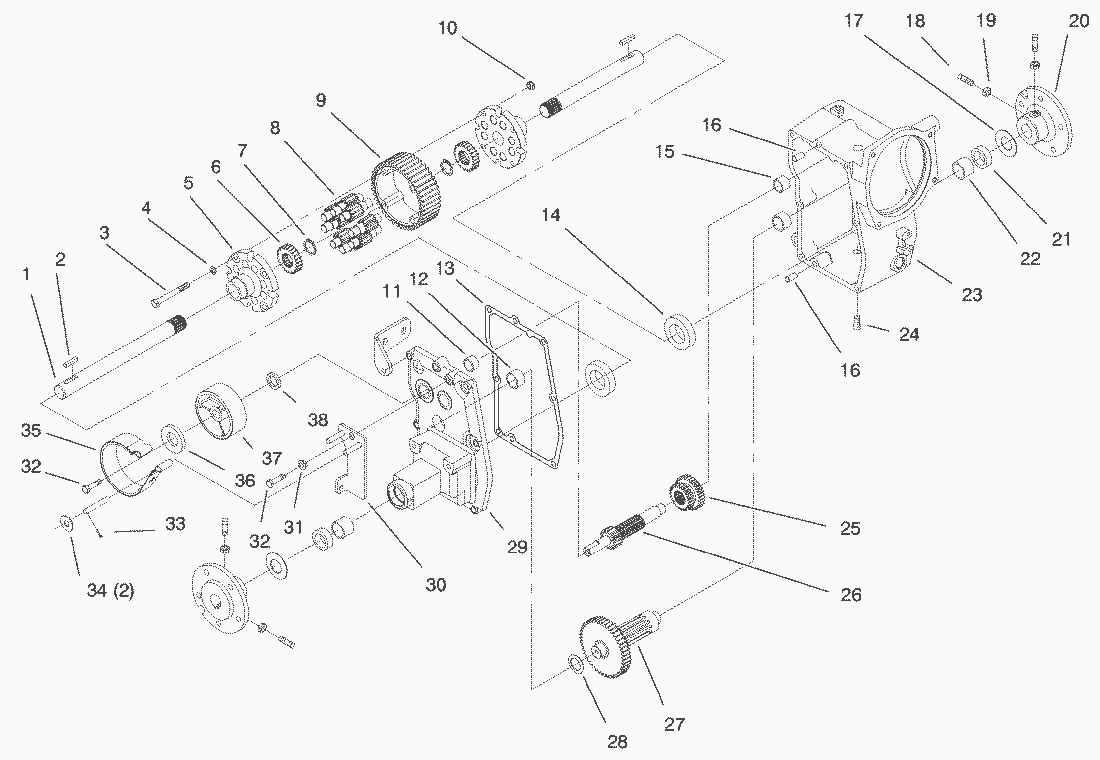

spare parts list


pos.decriptionspare part number
1Axle-Rear79-3340
2Key-Square79-3370
3Screw-HH911423
4Washer-Flat107374
5Cap-End111196
6Gear-Axle101889
7Ring-Retaining105876
8Gear-Pinion101623
9Gear-Differential105061
10Nut-Lock108881
11Bearing-Needle1540
12Bearing-Needle94-2021
13Gasket-Transaxle94-2022
14Bearing-Ball111199
15Bearing-Needle1529
16Pin-Locating108363
17Washer-Thrust106826
18Screw-Set3243-5
19Nut-Hex Jam3218-3
20Hub-Wheel105763-03
21Seal-Oil6449
22Bearing-Needle9416
23Case-Transaxle94-2001-03
24Plug-Pipe281-10
25Gear-Sliding94-2008
26Shaft-Brake94-2007
27M-Gear94-2006
28Washer-Thrust9547
29Case-Transaxle94-2002-03
30Arm-Brake Pivot94-2019-03
31Spacer-Cam100309
32Screw-HH3235-22
33Cotter Pin3272-6
34Flat Washer3256-24
35Brake Band94-2419
36Washer-Special2844
37Drum-Brake94-2009
38Seal-Oil253-44
