> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73551 > 8900001 > Liquid Cooled Diesel Engine Assy.

Spare Parts Lists for Toro Roth / TORO Liquid Cooled Diesel Engine Assy.

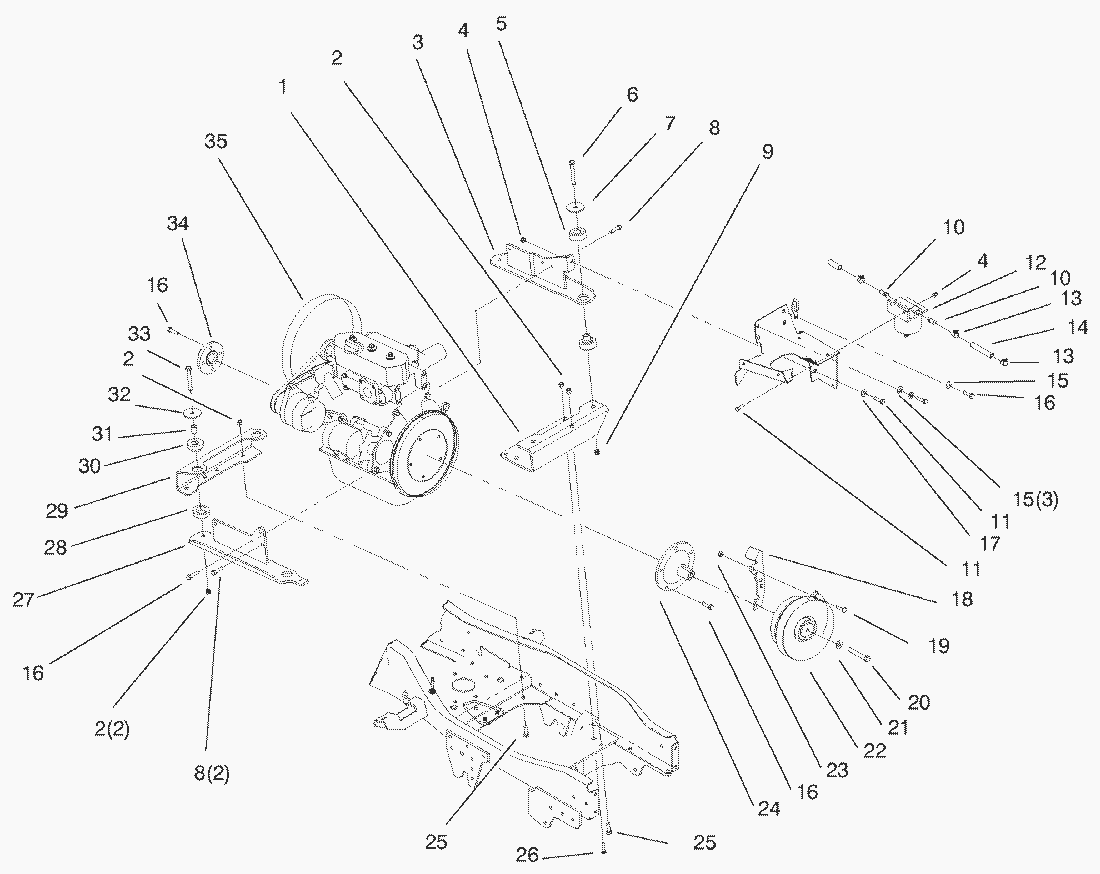

spare parts list


pos.decriptionspare part number
1Support-Front Eng95-3882-03
2Locknut3296-39
3Wa-LH Iso Brkt95-3890-03
4Locknut3296-8
5Mount-Isolation95-4188
6Screw-HH325-12
7Large Blade Washer55-7960
8Screw-Threadlocking95-4183
9Nut-Lock3296-23
10Pump Fitting353-783
11Capscrew321-4
12Filter/Water Separator63-7650
13Clamp2412-108
14Hose-Fuel (5/16)95-4279
15Washer3256-23
16Screw-Threadlocking95-4184
17Washer3256-22
18Brkt-Clutch95-4066-03
19Carriage Bolt3230-2
20Screw-Cap94-7973
21Washer-Flat3256-25
22Clutch-PTO94-2190
23MUTTER3296-29
24Hub-PTO, Briggs94-2065
25Screw-Cap Hex Hd.323-7
26Carriage Bolt3231-25
27Wa-RH Iso Brkt95-3889-03
28Ring-Isolation95-4190
29Support-Rear Eng95-3883-03
30Bushing-Isolation95-4189
31Sleeve-Iso Mount94-7527
32Washer-Flat83-1040
33Capscrew323-10
34Hub-Drive, Dl94-7892
35Engine (Model 73590)(Serial No. 9900001-900130)94-2163
