Slow in Turns Front Assy.

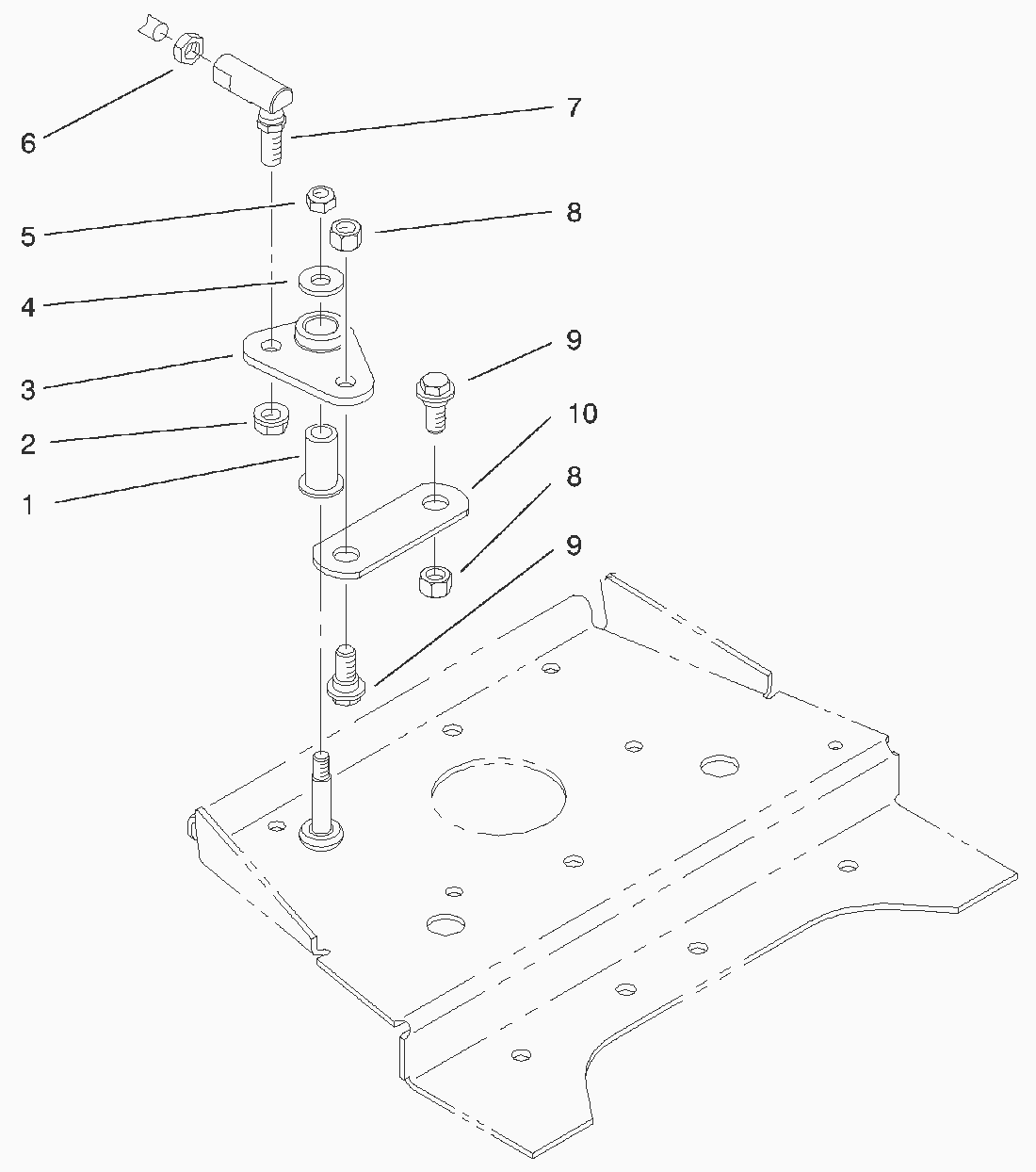

Spare Parts Lists for Toro Roth / TORO Slow in Turns Front Assy.
pos.
decription
spare part number
1
Bushing
94-7919
2
Locknut
3296-6
3
Lever-Slow Down
94-7579
4
Washer-Flat
98-3499
5
MUTTER
3296-29
6
Jam Nut LH Thread
3220-16
7
Tie Rod End LH
94-7573
8
Nut-Lock
108881
9
Bolt-Shoulder
94-7582
10
Link-Slow Down
94-2409
