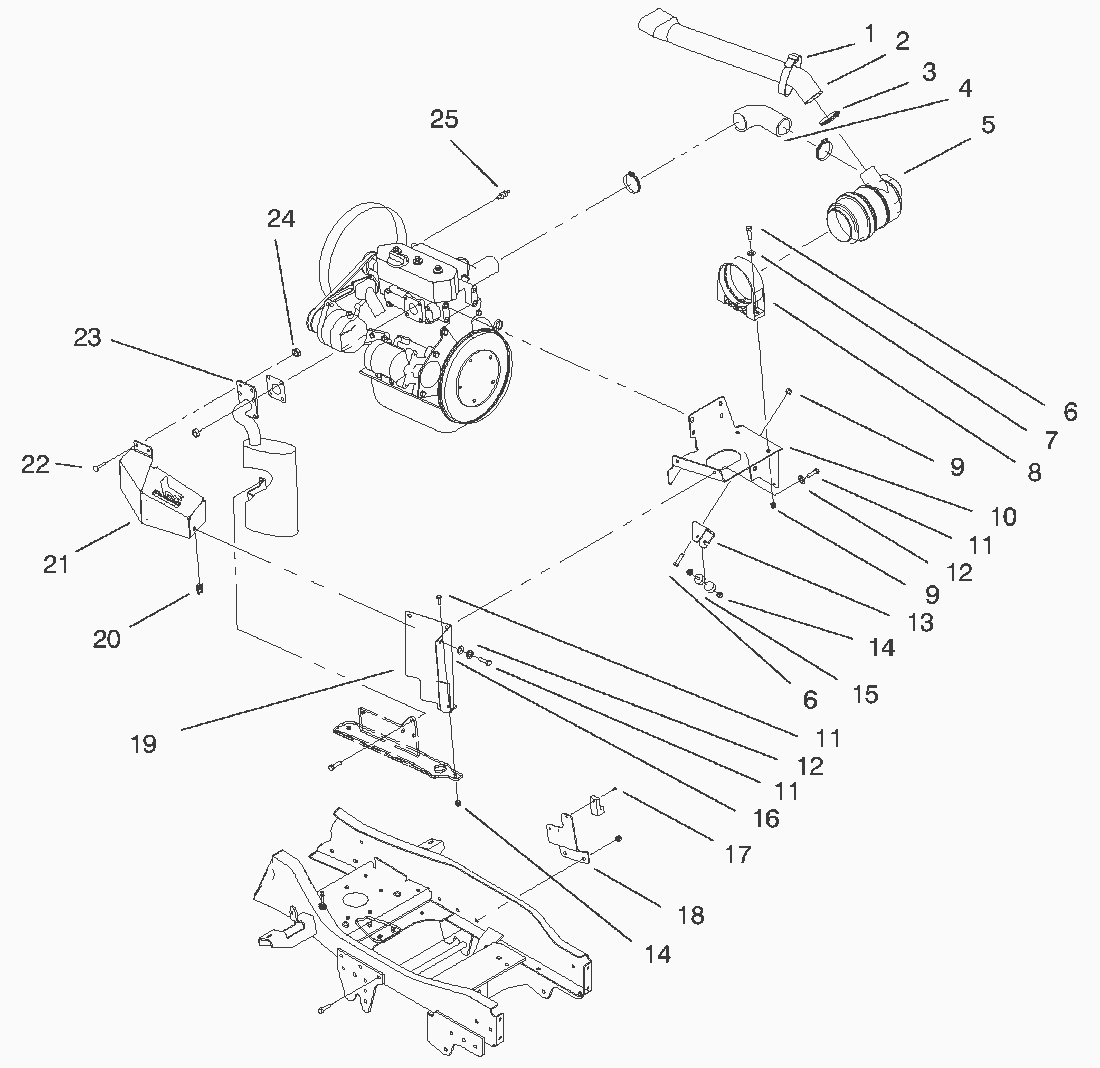

Spare Parts Lists for Toro Roth / TORO Liquid Cooled Diesel Engine Assy. (Cont.)

Lists

pos.	decription	spare part number
1	Strap-Tie Down	3290-379
2	Hose-Air Cleaner	98-1628
3	Hose Clamp	2412-92
4	Hose-Air Cleaner Outlet	95-4265
5
51	Filter	93-2195
52	Cover ASM	94-3652
53	Valve-Vacuator	87-9400
54	Pipe Plug	285-17
6	Hex Hd. Capscrew	322-5
7	Washer	3256-23
8	Bracket-Mounting, Air Cleaner	95-5806
9	MUTTER	3296-29
10	Guard-Flywheel	95-3891-03
11	Capscrew	321-4
12	Lockwasher	3253-3
13	Brkt-Clutch Anchor	95-4067-03
14	Locknut	3296-8
15	Bumper-Rubber	240-14
16	Washer	3256-22
17	Screw Thread Forming	32144-4
18	Bracket-Relay	95-4239-03
19	Heat Shield Wa	98-1634-03
20	Nut-Speed	107069
21	Heat Shield Wa	98-1638-03
22	Carriage Bolt	3229-1
23	Muffler	94-7958
24	Lock Nut	32152-4
25	Temp. Sender, Ds	94-7621
