> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 9900001 > Drive Shaft Assy.

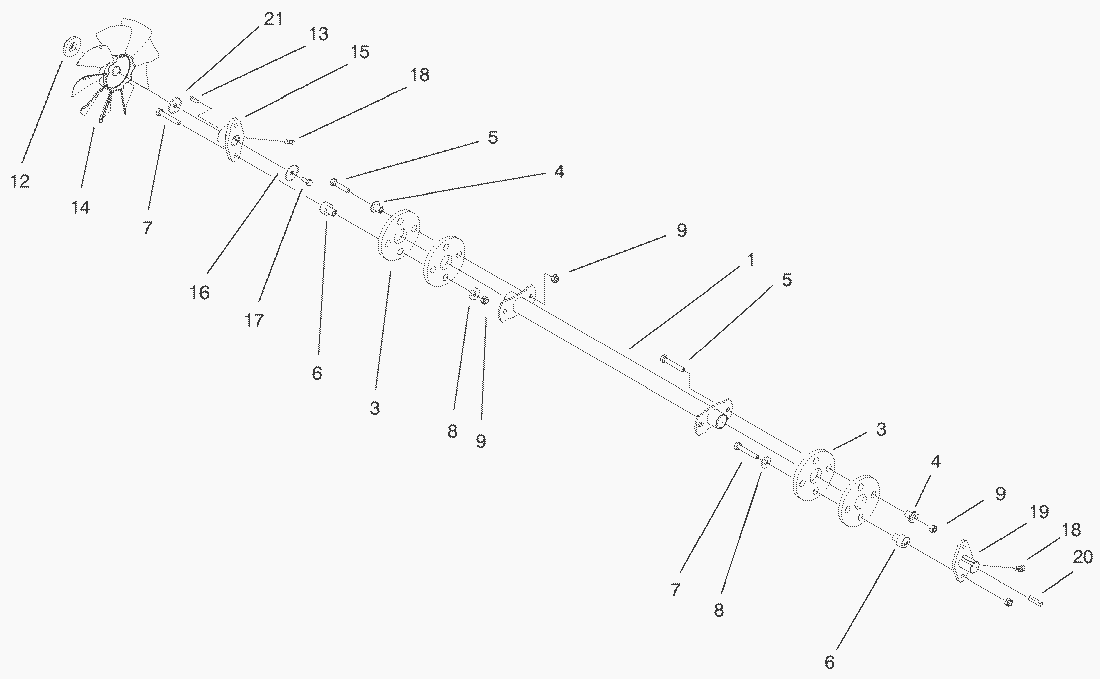

Spare Parts Lists for Toro Roth / TORO Drive Shaft Assy.




spare parts list


pos.decriptionspare part number
1Drive Shaft94-2373-03
3Coupling-Rubber44-2230
4Spacer-Coupling71-4411
5Capscrew322-7
6Spacer-Coupling71-4410
7Screw-Cap Hex. Hd.322-11
8Flat Washer3256-3
9MUTTER3296-29
12Spacer-Fan94-2371
13Key-Woodruff937089
14Fan-Hydro95-4223
15Hub94-2310
16Special Washer103995
17Screw-Lock94-7955
18Screw-Square Set94-7975
19Wa-Pin Drive94-7893
20Key98-9000
21Washer-Fan99-2313
