> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 9900001 > Fender, Footrest, & Seat Assy.

Spare Parts Lists for Toro Roth / TORO Fender, Footrest, & Seat Assy.

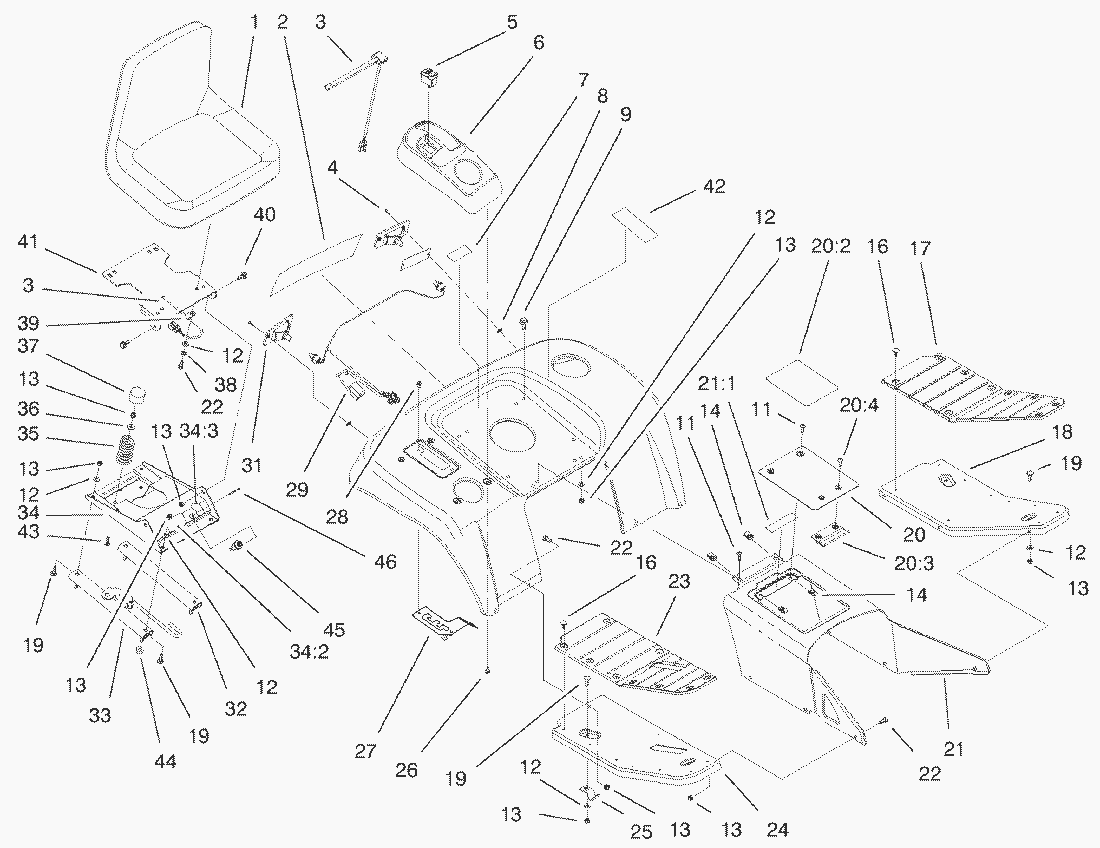

spare parts list


pos.decriptionspare part number
1Seat V-811 (Only On: 73540, 73541)94-3518
2Decal-Fender95-4262
3Switch-Seat38-1420
4Screw3250-29
5Switch Cruise (Only On: 73540, 73541)94-7602
6Pod-Control (Only On: 73540)94-2120
6Pod-Control (Only On: 73541)95-4000
7Decal-USA (Only On: 72042, 72043, 72083)76-1340
8Nut-Speed95-4115
9Screw-Hex Flange Hd.3234-29
11Screw-TTH92-7020
12Washer3256-23
13MUTTER3296-29
14Nut-Speed107069
16Fastener-Panel3290-479
17Pad-Footrest94-2096
18Footrest94-2090-01
19Carriage Bolt3230-16
20ASM Cover/Decal (Only On: 73471, 73542)99-6089
20Tunnel Cover ASM (Only On: 73541)98-1623
202Decal-Danger (Only On: 73471, 73542)99-6090
202Decal-Danger (Only On: 73541)98-1608
203Retainer-Cover95-4107
204Screw-Plastite (Only On: 73471, 73542)32104-123
204Screw94-4496
21ASM-Tunnel w/Decal (Only On: 73471, 73542)98-5025
21ASM-Tunnel w/Decal Europe (Only On: 73570)98-5058
211Decal-Danger (Only On: 73470, 73540)80-8760
211Decal-Warning (Only On: 73541)98-5015
22Capscrew322-3
23Pad-Footrest94-2095
24Footrest94-2089-01
25Bracket-Footrest95-3858
26Screw32144-20
