> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 9900001 > Smart Turn Rear Assy.

Spare Parts Lists for Toro Roth / TORO Smart Turn Rear Assy.

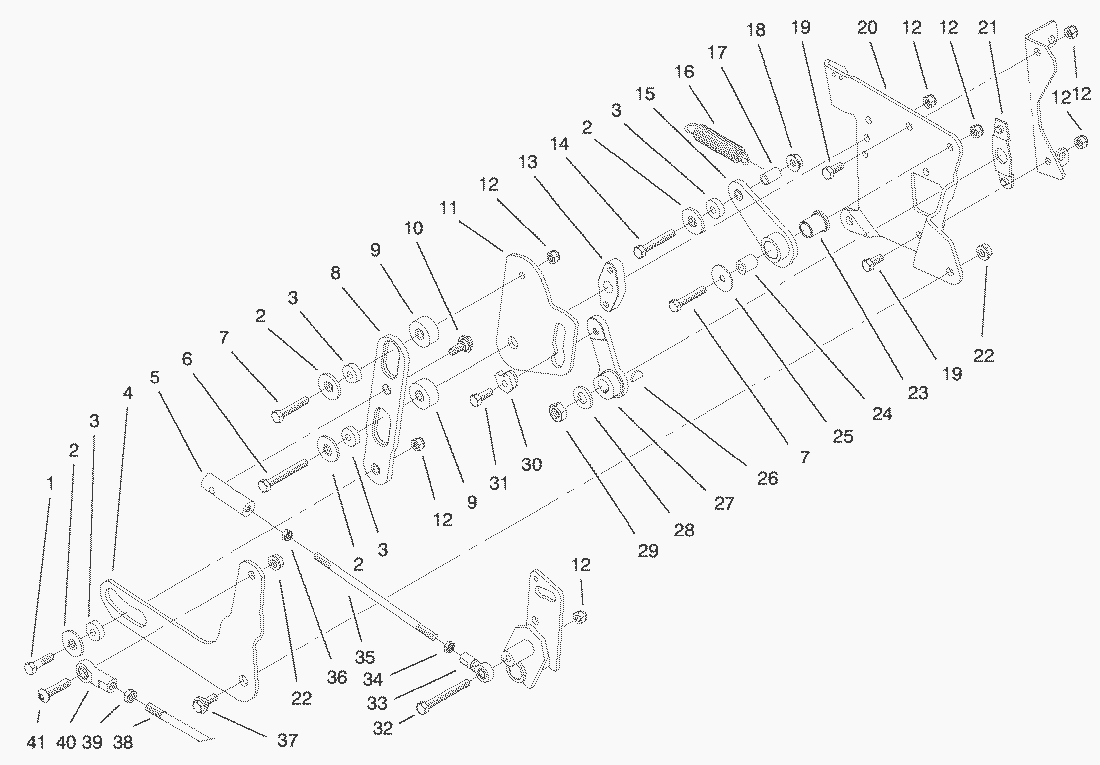

spare parts list

pos.	decription	spare part number
1	Capscrew	322-6
2	Retainer-Bearing	94-2313
3	Bearing-Ball	95-4185
4	Slider Lift	95-3801-03
5	Rod End RH	94-7637
6	Screw-Cap Hex. Hd.	322-12
7	Capscrew	322-9
8	Slider-Speed Control	94-2144
9	Standoff-Cam	94-2169
10	Bolt-Shoulder	94-7817
11	Plate-Cam	94-2145
12	MUTTER	3296-29
13	Standoff-Slider	94-2168
14	Capscrew	322-10
15	Arm-Return To Neutral	94-7586
16	Spring-Extension	63-1590
17	Standoff-Spring	94-2309
18	Nut-Flange	32128-30
19	Capscrew	322-3
20	Plate-Control	99-8053-03
21	Locater-Control Plate	94-7814
22	Nut-Lock	108881
23	Bushing-Flange	94-7913
24	Spacer	94-7564
25	Washer-Flat	3256-57
26	Key	3257-24
27	Arm-Speed Control	94-7816
28	Washer	3256-26
29	Nut	3296-45
30	Cam-Eccentric	94-2468
31	Screw-Thread Locking	95-4245
32	Screw-Hex. Flange Hd.	322-13
33	Rod End LH	94-7571
34	Hex. Jam Nut	3220-20
35	Rod-Slider To Pivot	94-2497
36	Jam Nut	3220-2
37	Bolt-Shoulder	94-7582
38	Rod-Lift Lever	94-7500
39	Jam Nut	3220-3
40	Rod End (Only On: 72043, 72103, 72063, 72083)	92-7008
41	Screw-Button Head	95-3857
