back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
523 Dxi
>
522/73590
>
9900001
>
Hydro Transaxle Assy.
Spare Parts Lists for Toro Roth / TORO Hydro Transaxle Assy.

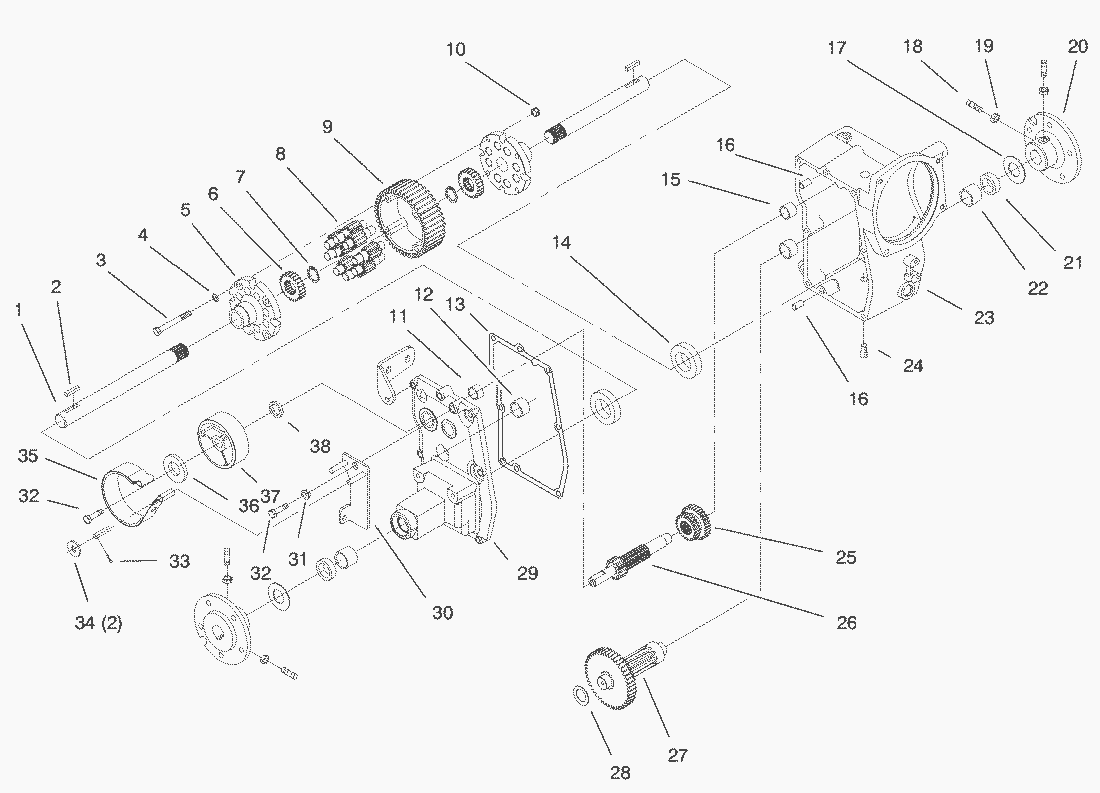

spare parts list 1
spare parts list 2
pos.
decription
spare part number
1
Axle-Rear
79-3340
2
Key-Square
79-3370
3
Screw-HH
911423
4
Washer-Flat
107374
5
Cap-End
111196
6
Gear-Axle
101889
7
Ring-Retaining
105876
8
Gear-Pinion
101623
9
Gear-Differential
105061
10
Nut-Lock
108881
11
Bearing-Needle
1540
12
Bearing-Needle
94-2021
13
Gasket-Case
99-5334
14
Bearing-Ball
111199
15
Bearing-Needle
1529
16
Pin-Locating
108363
17
Washer-Thrust
106826
18
Screw-Set
3243-5
19
Nut-Hex Jam
3218-3
20
Hub-Wheel
105763-03
21
Seal-Oil
6449
22
Bearing-Needle
9416
23
Case-Transaxle
94-2001-03
24
Plug-Pipe
99-8551
25
Gear-Sliding
94-2008
26
Shaft-Brake
94-2007
27
M-Gear
94-2006
28
Washer-Thrust
9547
29
Case-Transaxle
94-2002-03
30
Arm-Brake Pivot
94-2019-03
31
Spacer-Cam
100309
32
Screw-HH
3235-22
33
Cotter Pin
3272-6
34
Flat Washer
3256-24
35
Brake Band
94-2419
36
Washer-Special
2844
37
Drum-Brake
94-2009
38
Seal-Oil
253-44
pos.
decription
spare part number
1
Bearing-Needle
1529
2
Tube-Shifter Rail
94-2014
3
Rail-Shift
94-2054
4
Fork-Hi Lo Shift
94-2015
5
Pin-Spirol
933154
6
Arm-Shifter
94-2143
7
Arm-Hi Lo
94-7510
8
Ball
3517
9
Spring-Shift
94-2024
10
Screw-Set
3247-2
11
Dipstick
94-7680-03
12
Tube-Dipstick
94-7559
13
Ring-External Retaining
32120-64
14
Pinion-Bevel
94-7565
15
Gasket-Pump & Motor
702062
16
Fitting-Hydraulic
94-7693
161
O-Ring
237-42
162
O-Ring
237-30
17
Tube-Hydraulic
94-7969
18
Fitting-Hydraulic
94-7694
181
O-Ring
237-42
182
O-Ring
237-30
19
Plate-Support Bracket
94-2148-03
20
Bolt
323-13
21
Clamp-Hose
2412-141
22
Hose-Suction
95-4133
23
Fitting-Hose
94-7692
231
O-Ring
237-80
24
Transmission
94-2003
25
Plug-Pipe
99-8551
26
Base-Filter
108323
27
Fitting-Filter
5991
28
Filter-Oil
79-5270
29
Capscrew
321-5
30
Washer-Thrust
1535
31
Bearing-Needle
8571
32
Gear-Bevel
94-7566
33
Shaft-Input
94-2010
34
Ring-Retaining
32151-29
35
Gear-Hi Lo
94-2011
36
Capscrew
323-9
37
Capscrew
323-8
38
Lockwasher
3253-3
39
Fitting-Hydraulic
95-4138
391
O-Ring
237-22
392
O-Ring
237-42
40
Fitting-Hydraulic 45
95-4135
401
O-Ring
237-42
402
O-Ring
237-22
