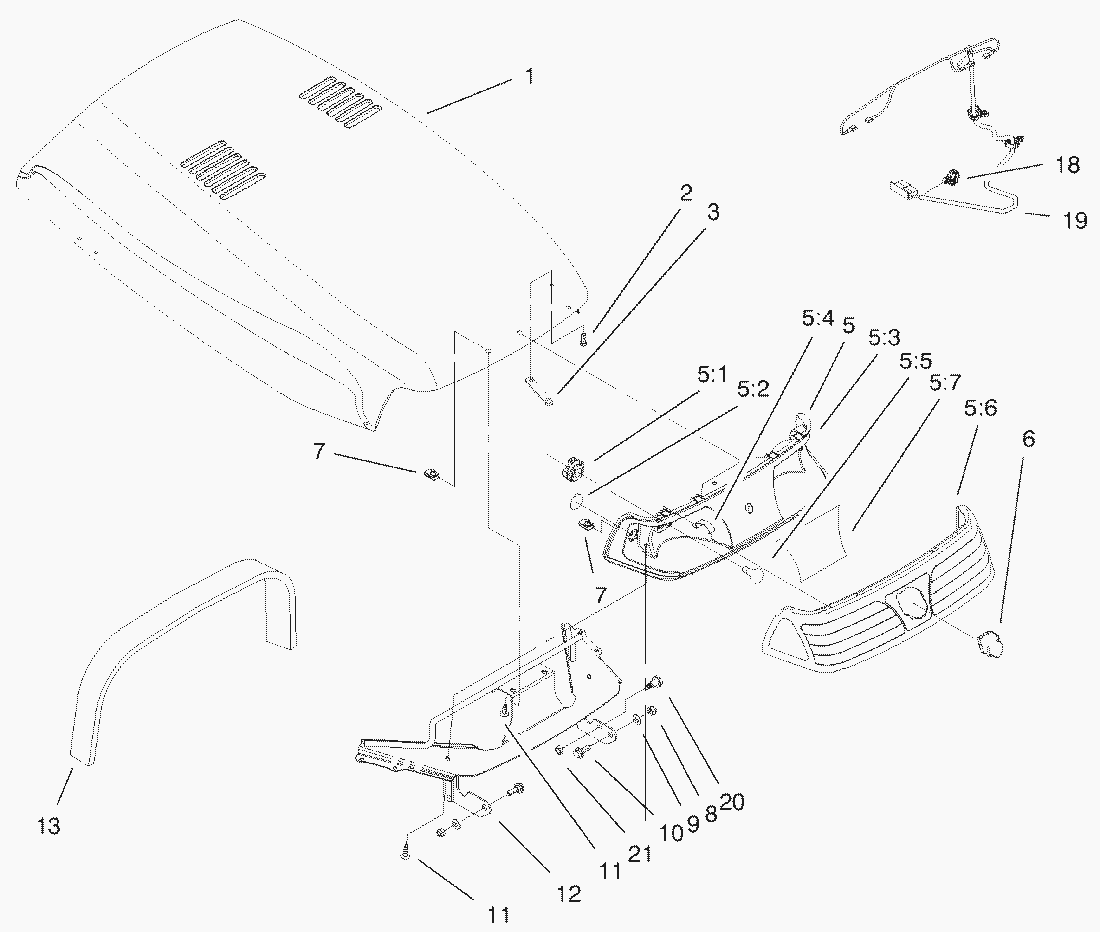

Spare Parts Lists for Toro Roth / TORO Hood & HeadLight Assy.

pos.	decription	spare part number
1	Hood ASM	98-7205
2	Screw-Thread Forming	63-8590
3	Plate-Nut	99-2323
5	Headlight ASM	95-4166
51	Socket	98-3591
52	Decal-Sidelight	98-1602
53	Reflector-Headlight	94-2098
54	Clip	95-4129
55	Light Bulb	7228
56	Lens-Headlight	94-2099
57	Decal-Headlight Reflector	98-3597
6	Logo-Headlight	95-4248
7	Nut-Speed	107069
8	MUTTER	3296-29
9	Washer	3256-23
10	Shoulder Screw	27-0410
11	Screw-TTH	92-7020
12	Front Bulkhead, W.a.	99-4962-03
13	Foam Seal-Rear Bulkhead	95-4078
18	Clip-Convoluted	98-1810
19	Harness-Wire	95-0691
20	Bolt-Shoulder	92-6986
21	Nut-Lock	3296-47
