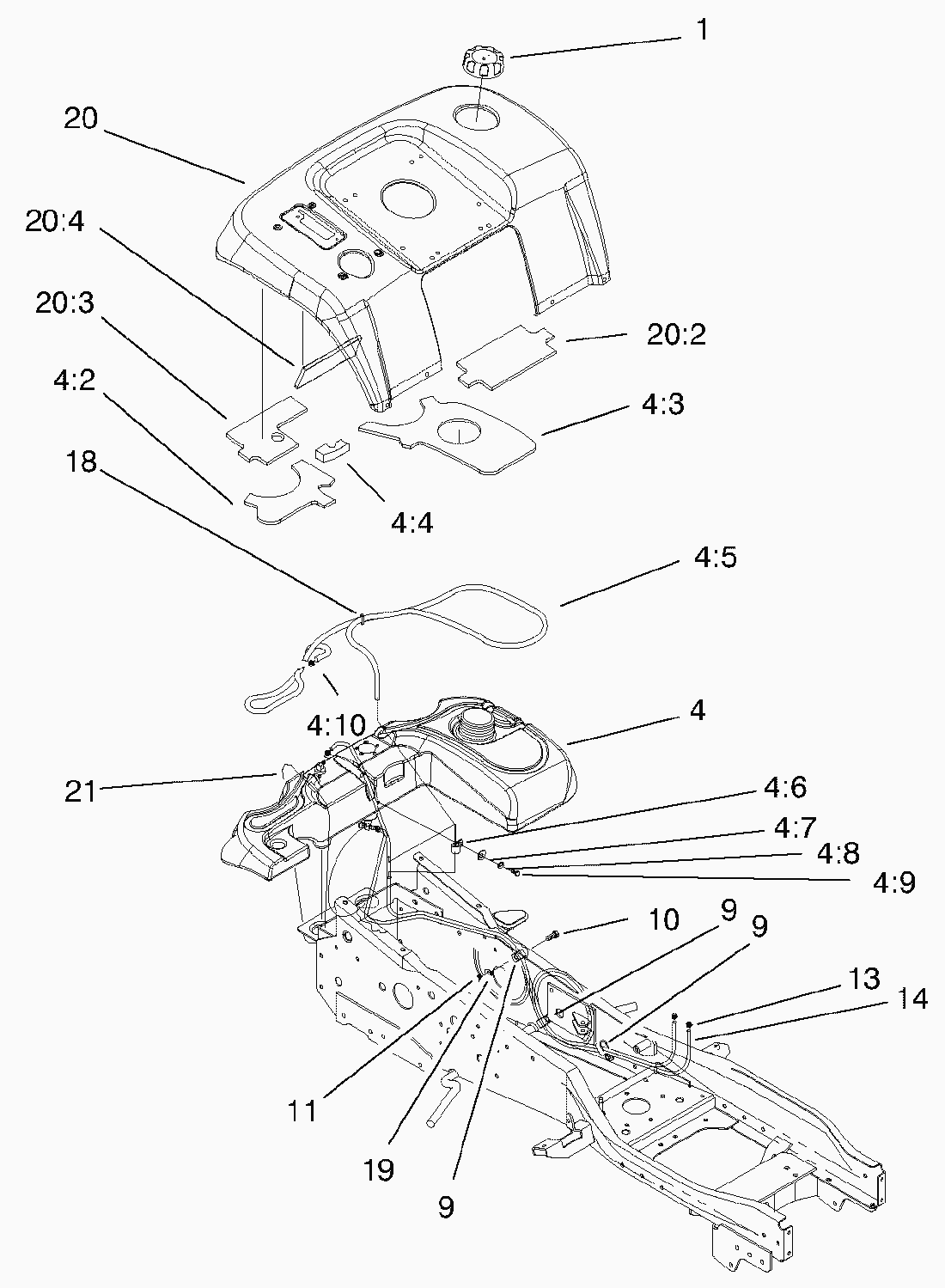

Spare Parts Lists for Toro Roth / TORO Fender & Fuel System Assy.

pos.	decription	spare part number
1	ASM-Gas Cap Diesel	95-4193
4	Tank-Diesel Assy. (Service)	99-6142
42	Foam-Tank	99-6146
43	Foam-Tank	99-6145
44	Foam-Tank Top	99-6887
45	Hose-Vent (Service)	99-8553
46	Clamp-Tube	95-4187
47	Washer	3256-22
48	Lockwasher	3253-3
49	SCHRAUBE	321-3
410	Clamp-Hose	94-8189
9	Clamp-Tube (Only On: 73551, 73550)	98-1617
10	Capscrew	323-6
11	Locknut	3296-39
13	Clamp	2412-108
14	Hose-Fuel (Service)	99-9682
18	Tie Strap	614249
19	Flat Washer	3256-24
20	Rear Body ASM	98-7208
202	Foam-Tank LH	95-4159
203	Cover-Brace	95-4258
204	Foam-Tank Center	95-4157
21	Tie-Cable	99-5901
