> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 9900001 > Engine Assy. (Serial No. 99000001 & up)(Model 73552) Engine Assy. (Serial No. 99001001 & up)(Model 73590)

Spare Parts Lists for Toro Roth / TORO Engine Assy. (Serial No. 99000001 & up)(Model 73552) Engine Assy. (Serial No. 99001001 & up)(Model 73590)


spare parts list 1
spare parts list 2
spare parts list 3
spare parts list 4
spare parts list 5
spare parts list 6
spare parts list 7
spare parts list 8
spare parts list 9
spare parts list 10
spare parts list 11
spare parts list 12


pos.decriptionspare part number
99-9635
99-9634
spare parts list

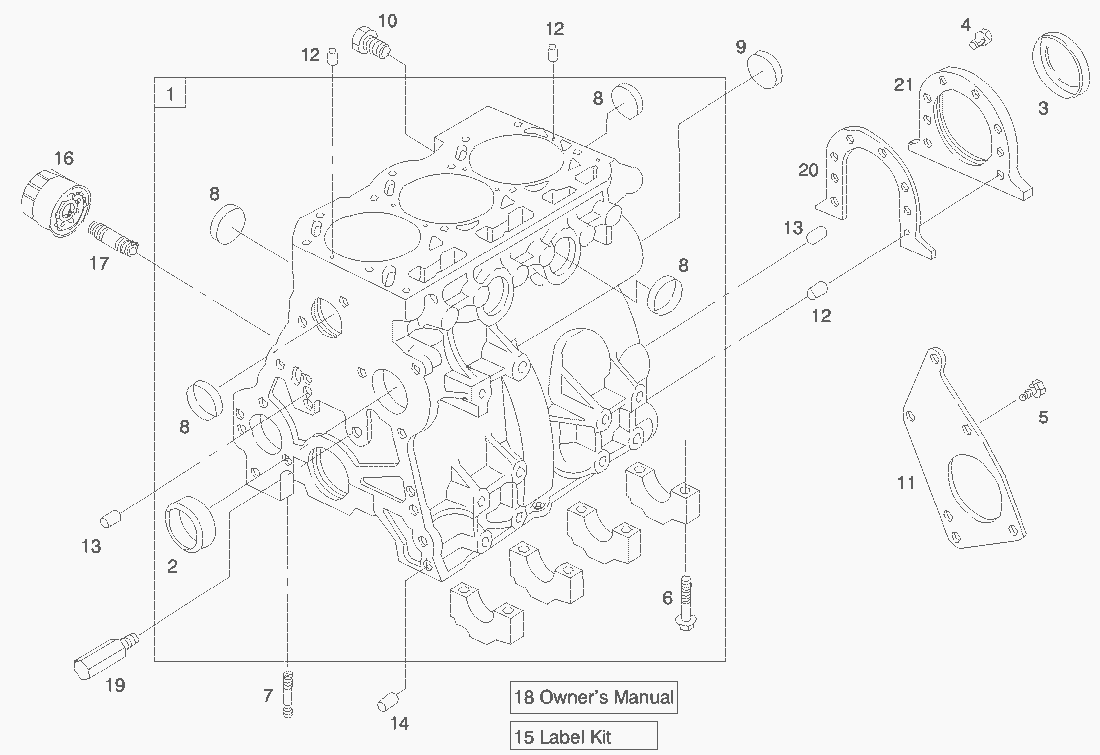

pos.decriptionspare part number
1Cylinder Assembly99-9600
2Bushing99-9002
3Seal-Oil99-9003
4Screw-Hex99-9004
5Screw-Hex99-9005
6Screw-Hex99-9006
7Stud-Metric99-9007
8Plug-Welch99-9008
9Plug-Welch (Camshaft)99-9010
10Plug (Cylinder Block)99-9601
11Bracket-Mounting99-9011
12Pin-Locating99-9012
13Pin-Locating99-9013
14Pin-Locating99-9014
15Label Kit99-9015
16Filter-Oil99-9017
17Adapter-Oil Filter99-9018
18Owner s Manual99-9602
19Nozzle-Oil99-9020
20Gasket-Retainer99-9021
21Retainer-Seal99-9022
spare parts list

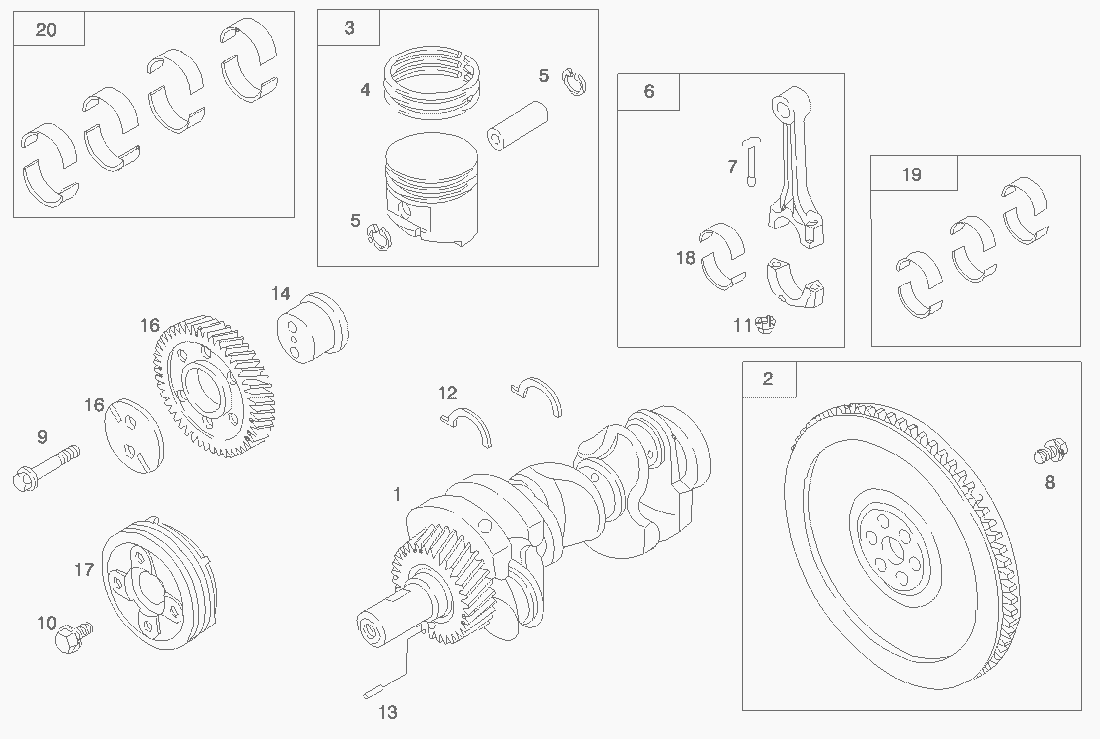

pos.decriptionspare part number
1Crankshaft99-9603
2Flywheel99-9604
3Piston Assembly99-9605
4Ring Set99-9606
5Lock-Piston Pin99-9607
6Rod-Connecting99-9608
7Screw-Connecting Rod99-9030
8Screw-10mm Hex99-9031
9Screw-8mm Hex99-9032
10Screw-Hex99-9033
11Nut-Hex99-9034
12Washer-Thrust99-9035
13Pin-Locating99-9037
14Gear-Drive99-9609
15Shaft-Gear99-9039
16Plate-Idler Gear99-9040
17Pully-Crankshaft99-9692
18Bearing-Rod99-9042
19Bearing Set-Rod99-9043
20Bearing Set-Main99-9045
spare parts list

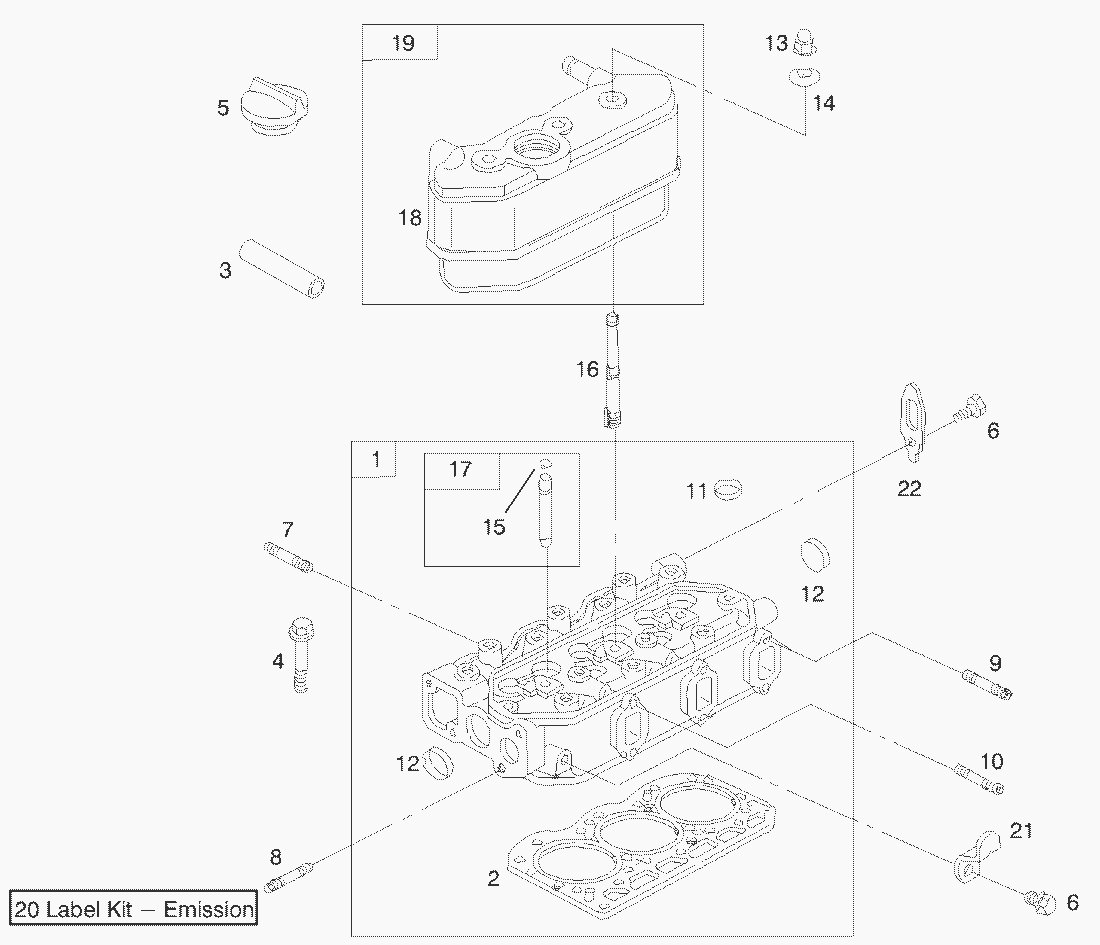

pos.decriptionspare part number
1Head-Cylinder99-9611
2Gasket-Cylinder Head99-9612
3Tube-Breather99-9613
4Screw-Metric99-9614
5Cap-Oil Fill99-9052
6Screw-8mm Hex99-9054
7Stud-Metric99-9055
8Stud-Metric99-9057
9Stud-Metric99-9058
10Stud-Metric99-9059
11Plug-Welch99-9008
12Plug-Welch99-9060
13Nut-Metric Hex99-9061
14Washer-Seal99-9063
15Retainer99-9067
16Stud-Rocker Arm99-9101
17Bushing-Guide99-9070
18Gasket-Rocker Cover99-9073
19Cover-Rocker99-9074
20Label Kit-Emission99-9615
21Bracket-Lifting99-9076
22Bracket-Lifting99-9077
spare parts list

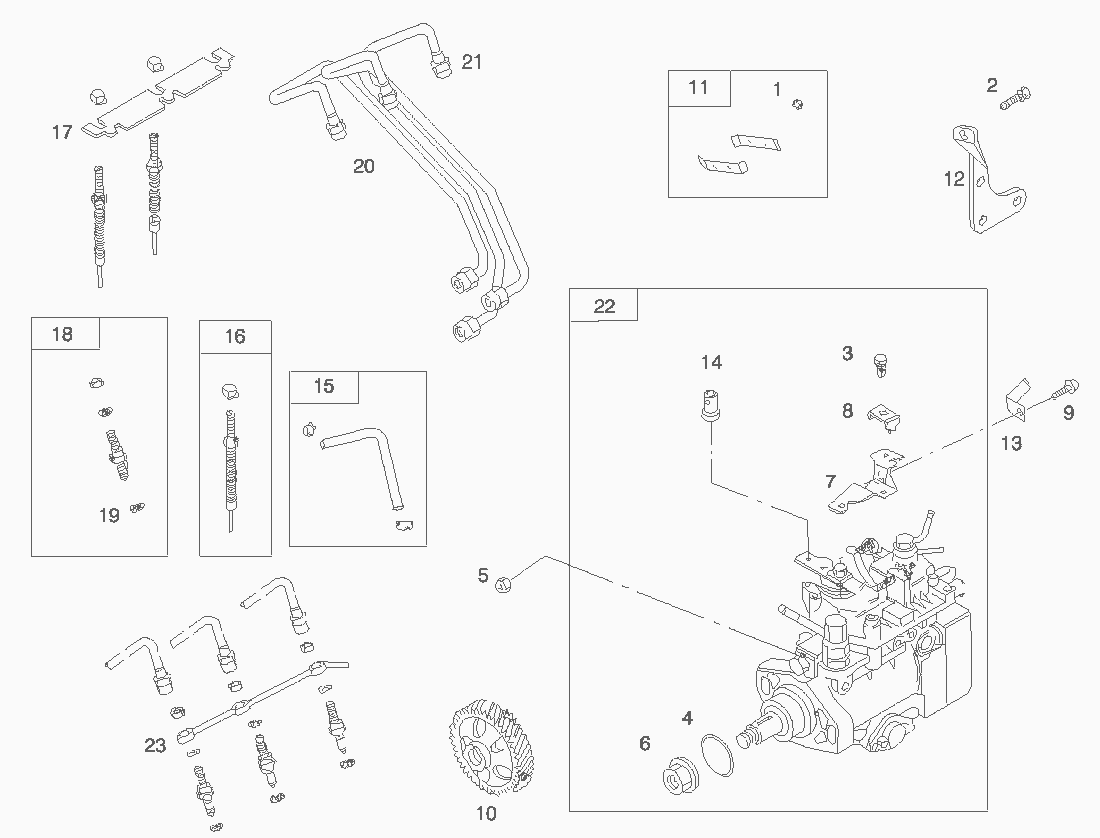

pos.decriptionspare part number
1Screw-Hex99-9004
2Screw-8mm Hex99-9616
3Screw-Metric99-9617
4Seal-O-Ring99-9618
5Nut-Metric Hex99-9619
6Nut-Metric Hex99-9620
7Bracket-Casing Clamp99-9621
8Clamp-Casing99-9622
9Screw-Hex99-9623
10Gear-Drive99-9624
11Clamp99-9625
12Bracket-Support99-9626
13Bracket-Support99-9627
14Clamp-Swivel99-9628
15Hose/Clamp Assembly99-9629
16Plug-Glow99-9630
17Strap-Glow Plug99-9631
18Nozzle-Injector99-9632
19Seat-Injector99-9633
22Pump-Injection99-9636
23Pipe-Fuel Return99-9637
spare parts list

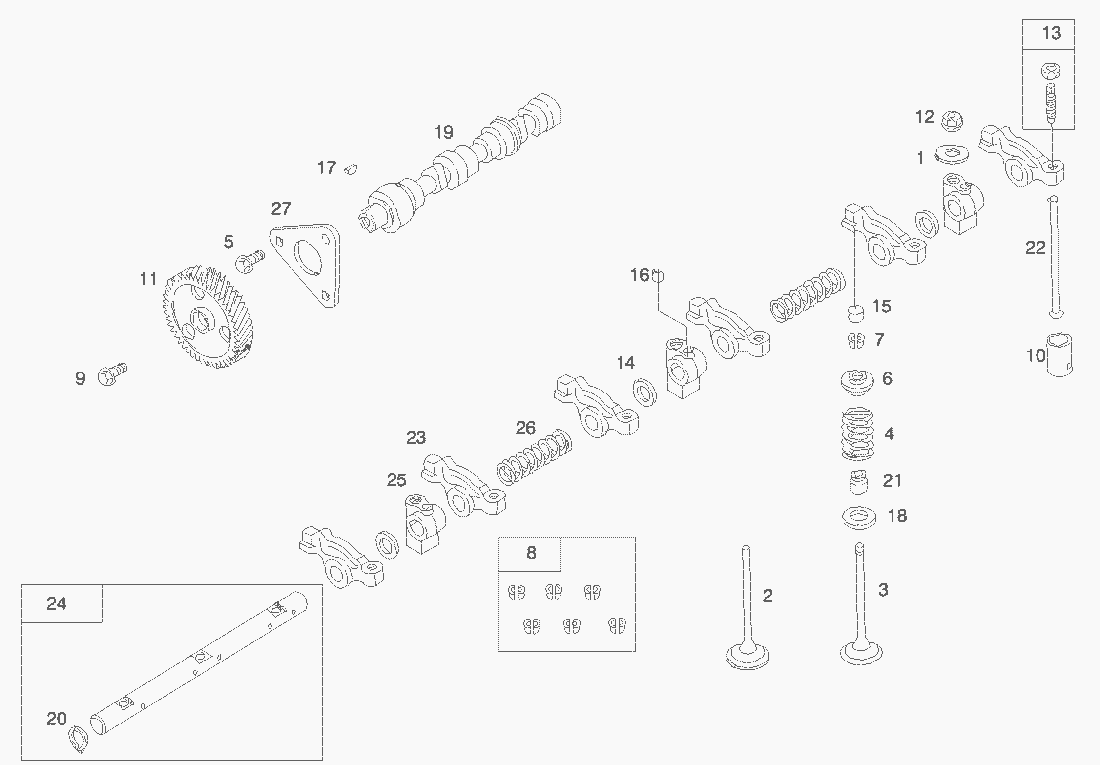

pos.decriptionspare part number
1Washer-Flat99-9079
2Valve-Exhaust99-9638
3Valve-Intake99-9639
4Spring-Valve99-9640
5Screw-6mm Hex99-9083
6Retainer-Valve99-9084
7Keeper-Valve99-9086
8Keeper-Valve99-9087
9Screw-Metric99-9085
10Tappet-Valve99-9088
11Gear-Cam99-9641
12Nut-Metric Hex99-9091
13Adjuster-Rocker Arm99-9092
14Washer-Spacer99-9093
15Cap-Valve99-9094
16Screw-Metric99-9090
17Key-Timing99-9642
18Seat-Valve Spring99-9096
19Shaft-Cam99-9097
20Retainer99-9099
21Seal-Valve99-9643
22Rod-Push99-9103
23Arm-Rocker99-9104
24Shaft-Rocker Arm99-9106
25Support-Rocker Arm99-9107
26Spring-Rocker Shaft99-9108
27Retainer-Camshaft99-9109
spare parts list


pos.decriptionspare part number
1Plug-Oil Drain99-9644
2Screw-6mm Hex99-9111
3Stud-Metric99-9112
4Nut-Metric Hex99-9113
5Nut-Metric Hex99-9114
6Switch-Oil Pressure99-9115
7Screen-Oil Pump99-9116
8Washer-Seal99-9645
9Tube-Dipstickx99-9118
10Screw-6mm Hex99-9646
11Bracket-Support99-9647
12Gasket-Oil Strainer99-9120
13Gasket-Oil Pan99-9121
14Dipstick99-9650
15Dipstick99-9648
16Pan-Oil99-9649
spare parts list

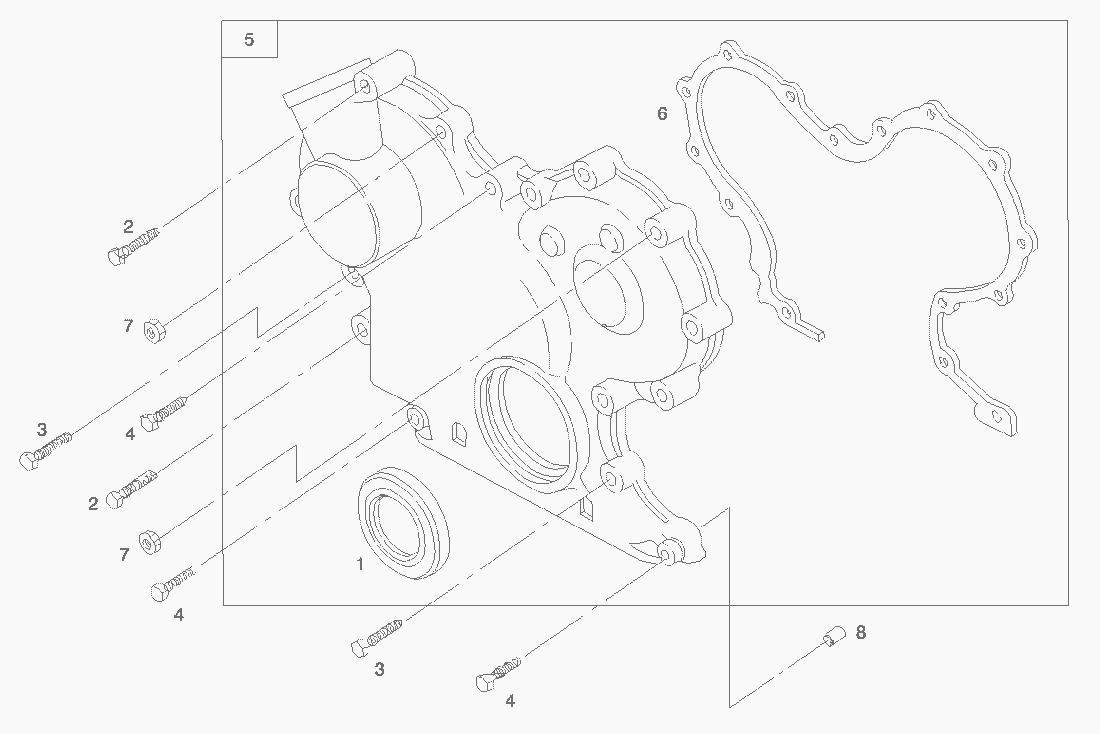

pos.decriptionspare part number
1Seal-Oil99-9126
2Screw-6mm Hex99-9651
3Screw-6mm Hex99-9128
4Screw-6mm Hex99-9129
5Cover-Assembly-G ar99-9652
6Gasket-Gear Cover99-9653
7Nut-Metric Hex99-9114
8Pin-Locating99-9014
spare parts list

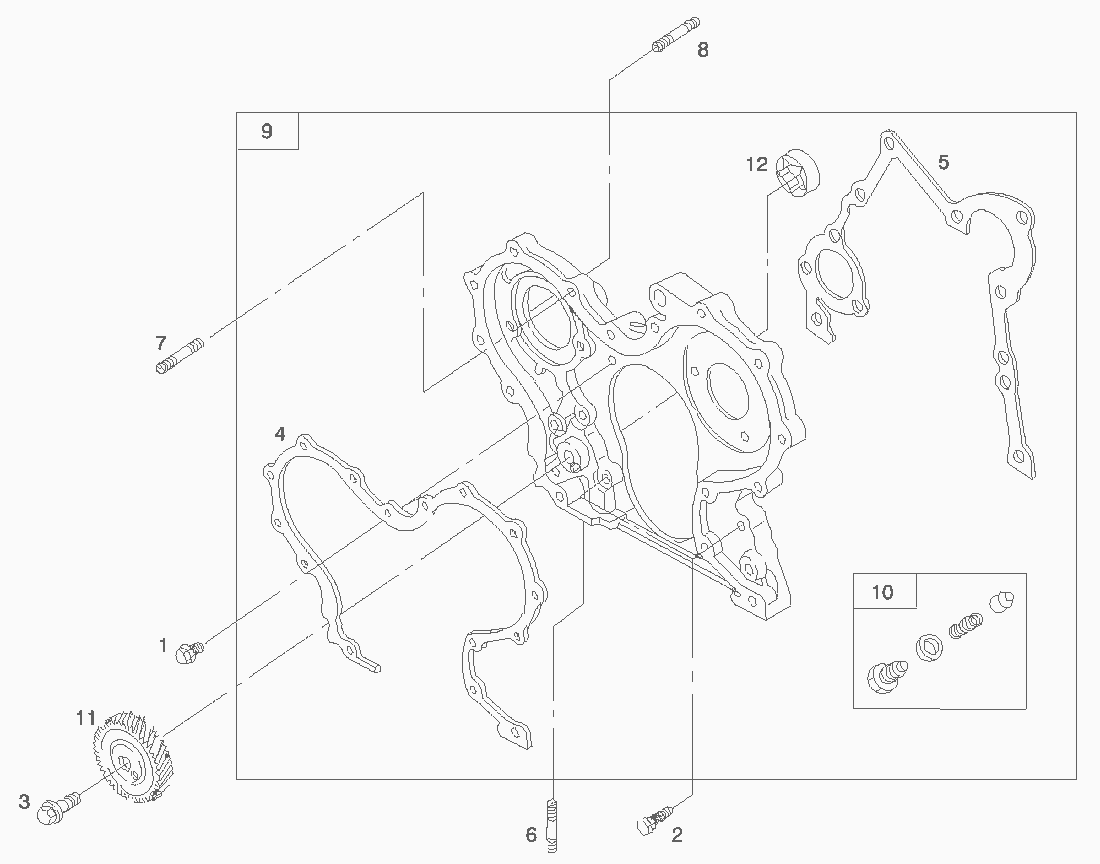

pos.decriptionspare part number
1Screw-6mm Hex99-9134
2Screw-6mm Hex99-9133
3Screw-8mm Hex99-9135
4Gasket-Gear Cover99-9653
5Gasket-Gear Cover99-9136
6Stud-Metric99-9007
7Stud-Metric99-9137
8Stud-Metric99-9654
9Housing-Gear99-9655
10Valve-Oil Relief99-9142
11Gear-Drive99-9656
12Pump-Oil99-9694
spare parts list


pos.decriptionspare part number
3Screw-8mm Hex99-9151
4Screw-Metric99-9152
5Nut-Metric Hex99-9153
6Thermostat99-9155
7Belt-Vee99-9156
8Switch-Water Temp.99-9157
9Plug99-9159
10Fan-Radiator99-9657
11Gasket-Outlet99-9163
12Pulley-Pump99-9164
13Housing-Outlet99-9658
14Gasket-Inlet Housing99-9166
15Housing-Inlet99-9167
16Gasket-Water Pump99-9168
17Pump-Water99-9659
spare parts list


pos.decriptionspare part number
2Screw-6mm Hex99-9660
3Manifold-Intake99-9661
4Gasket-Intake99-9662
5Stud-Exhaust Manifold99-9174
6Nut-Metric Hex99-9114
7Nut-Metric Hex99-9175
8Nut-Metric Hex99-9176
9Manifold-Exhaust99-9177
10Gasket-Exhaust99-9178
11Gasket-Exhaust99-9179
spare parts list

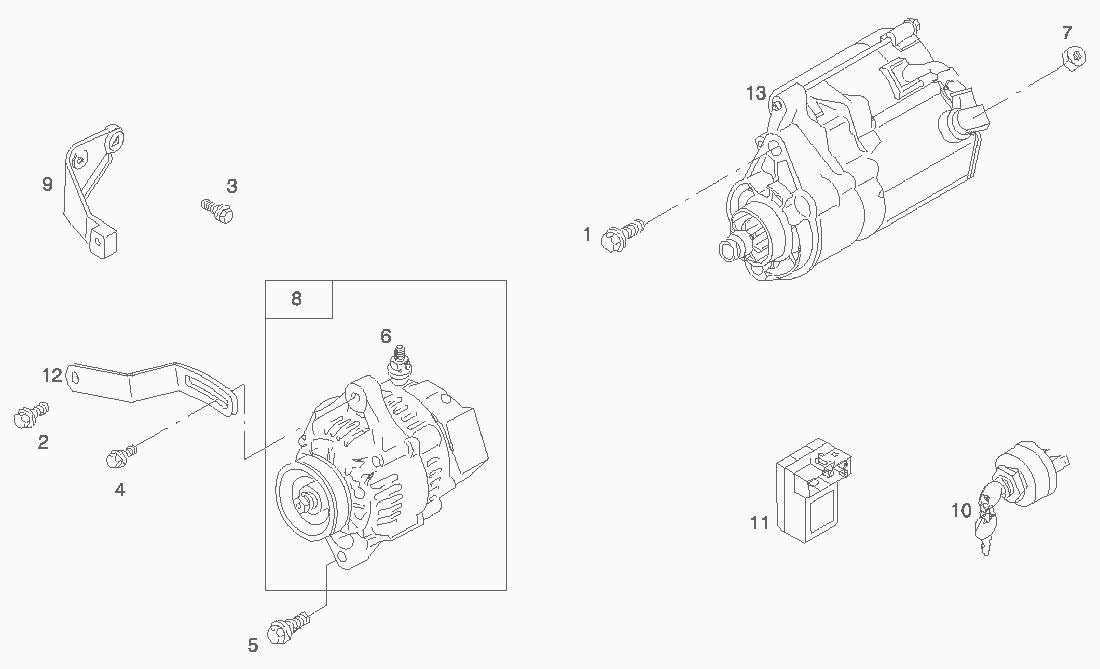

pos.decriptionspare part number
1Screw-10mm Hex99-9201
2Screw-8mm Hex99-9202
3Screw-8mm Hex99-9203
4Screw-Metric Hex99-9663
5Screw-Metric Hex99-9205
7Nut-Metric Hex99-9206
8Alternator99-9209
9Bracket-Support99-9211
10Key Switch99-9665
11Module99-9666
12Bracket-Adjusting99-9212
13Motor-Starter99-9693
spare parts list

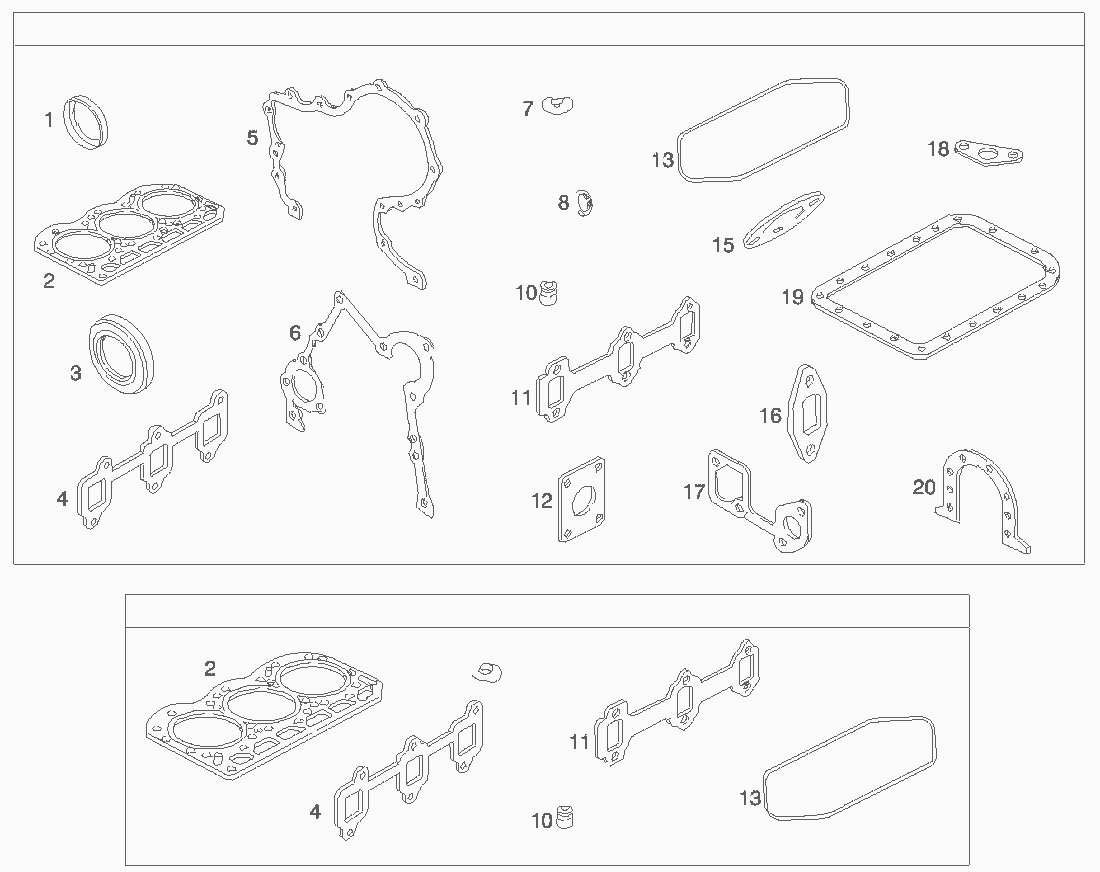

pos.decriptionspare part number
1Seal-Oil99-9003
3Seal-Oil99-9126
5Gasket-Gear Cover99-9653
6Gasket-Gear Cover99-9136
7Washer-Seal99-9063
9Gasket-Set99-9667
10Seal-Valve99-9643
11Gasket-Exhaust99-9178
12Gasket-Exhaust99-9179
13Gasket-Rocker Cover99-9073
14Kit-Valve Overhaul99-9668
15Gasket-Outlet99-9163
16Gasket-Inlet Housing99-9166
17Gasket-Water Pump99-9168
18Gasket-Oil Strainer99-9120
19Gasket-Oil Pan99-9121
