> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 9900001 > Liquid Cooled Diesel Engine Assy.

Spare Parts Lists for Toro Roth / TORO Liquid Cooled Diesel Engine Assy.


spare parts list 1
spare parts list 2
spare parts list 3


pos.decriptionspare part number
Trim-Loc98-7216
98-7217

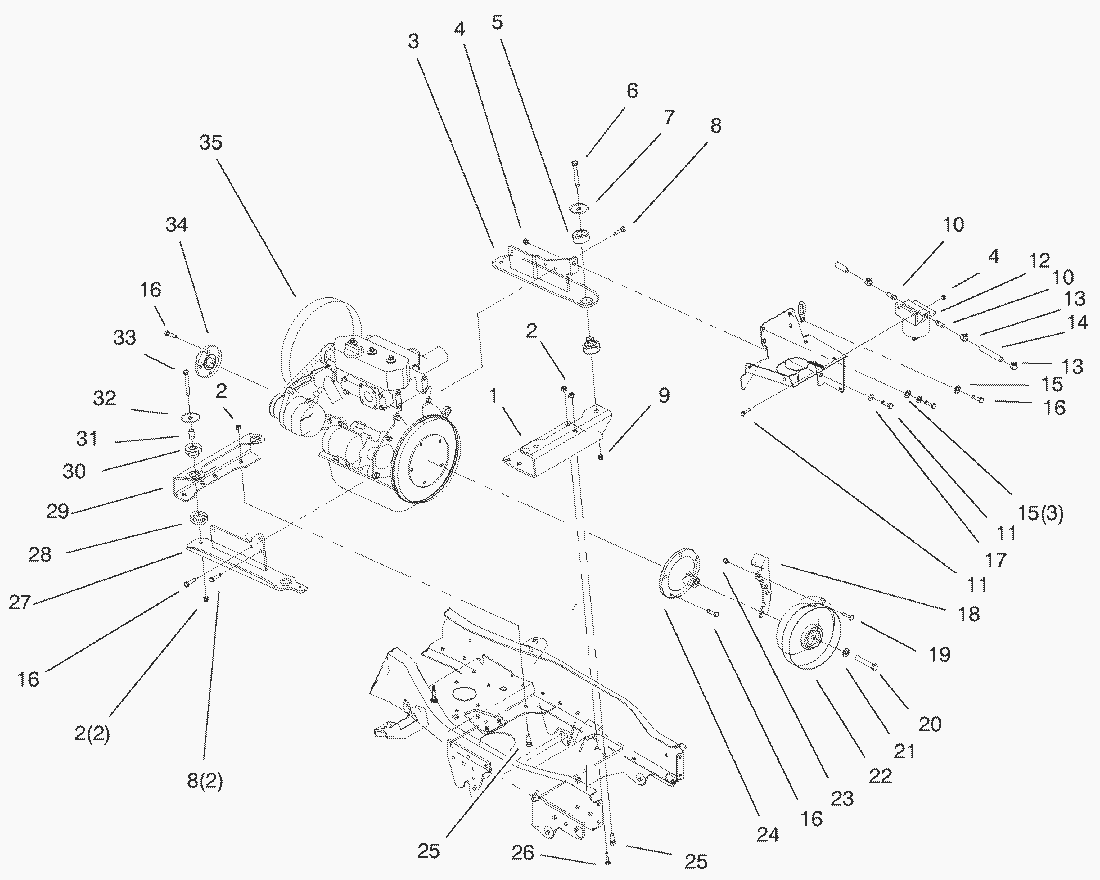

spare parts list


pos.decriptionspare part number
1Support-Front Eng95-3882-03
2Locknut3296-39
3Wa-LH Iso Brkt95-3890-03
4Locknut3296-8
5Mount-Isolation95-4188
6Screw-HH325-12
7Large Blade Washer55-7960
8Screw-Threadlocking95-4183
9Nut-Lock3296-23
10Pump Fitting353-783
11Screw-Hex Hd.321-6
12Filter/Water Separator63-7650
121Head Assembly63-8280
122Air Vent63-8290
123Spin-On Element63-8300
124Drain Valve63-8310
13Clamp2412-108
14Hose-Fuel (Service)99-9687
15Washer3256-23
16Screw-Threadlocking95-4184
17Washer3256-22
18Brkt-Clutch95-4066-03
19Carriage Bolt3230-2
20Screw-Cap94-7973
21Washer-Flat3256-25
22Clutch-PTO94-2190
23MUTTER3296-29
24Hub-PTO, Briggs94-2065
25Screw-Cap Hex Hd.323-7
26Carriage Bolt3231-25
27Wa-RH Iso Brkt95-3889-03
28Ring-Isolation95-4190
29Support-Rear Eng95-3883-03
30Bushing-Isolation95-4189
31Sleeve-Iso Mount94-7527
32Washer-Flat83-1040
33Capscrew323-10
34Hub-Drive, Dl94-7892
35Engine (Model 73590)(Serial No. 9900001-900130)94-2163
35Engine (Model 73590)(Serial No. 9901001 & Up)99-5310

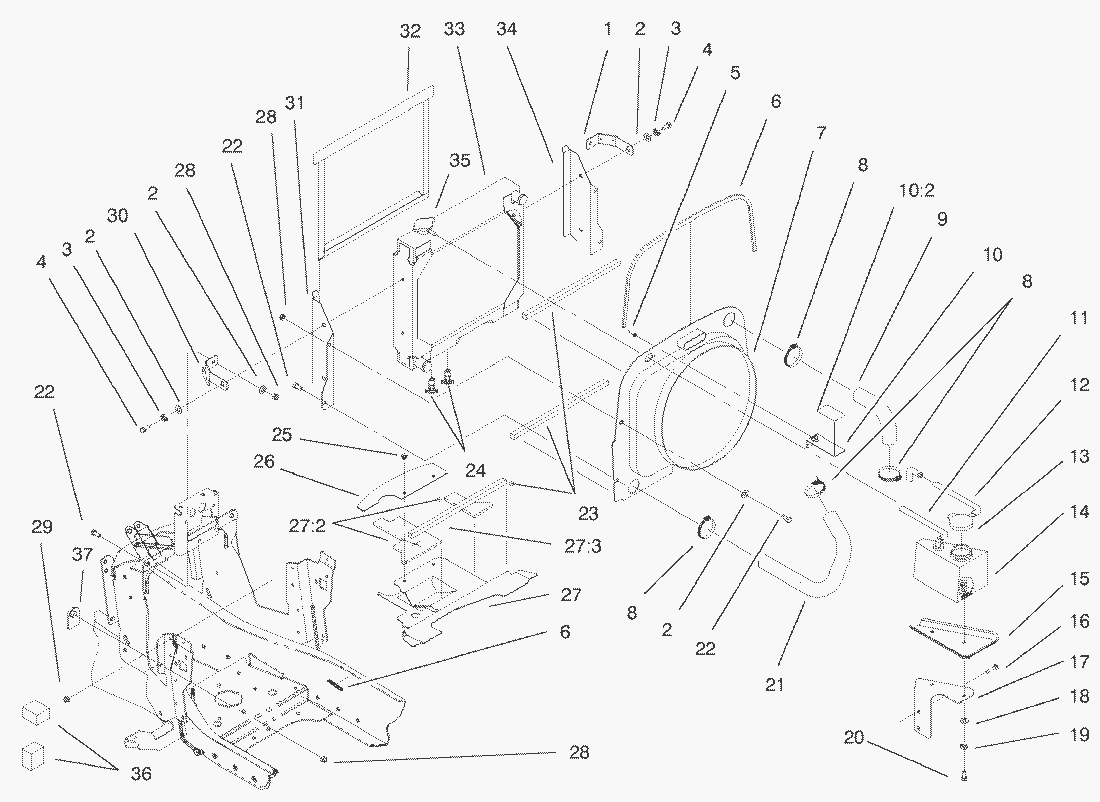

spare parts list


pos.decriptionspare part number
1Strap-Radiator94-7644-03
2Washer3256-23
3Lockwasher3253-4
4Hex Hd. Capscrew322-2
5Rivet-Pop3269-13
7Shroud-Fan95-3825
8Clamp-Hose (Only On: 72043, 72103, 72063, 72083)2412-34
9Hose-Rad. Daihatsu95-4266
10Bracket ASM98-5024
102Decal-Warning95-4143
11Hose-Gas Line Long62-2470
12Hose-Overflow95-4227
13Cap-Coolant95-4191
14Bottle-Overflow95-4017
15Tray-Overflow98-1600
16Carriage Bolt3229-1
17Bracket-Bottle95-4080-03
18Washer3256-22
19Lockwasher3253-3
20SCHRAUBE321-3
21Hose-Rad. Daihatsu95-4267
22Hex Hd. Capscrew322-5
23Foam-Radiator95-4161
24Valve-Drain95-4142
25Rivet-Plastic95-4237
26Baffle-Tower Rear95-4170
27Baffle-Tower ASM99-8052
272Foam-Baffle98-5026
273Foam-Radiator95-4161
28MUTTER3296-29
29Locknut3296-8
30Bracket-Relay98-3590-03
31Support-Radiator RH94-7645-03
32Screen-Chaff98-1643-03
33Radiator-Diesel94-7640
34Support-Radiator LH94-7646-03
35Cap-Radiator93-5957
36Foam-Kohler98-3086
37Washer-Spacer98-8712
spare parts list


pos.decriptionspare part number
1Strap-Tie Down3290-379
2Hose-Air Cleaner98-1628
3Hose Clamp2412-92
4Hose-Air Cleaner Outlet95-4265
5Air Cleaner Assy93-2190
52Filter93-2195
53Cover ASM94-3652
531Latch-Air CleanerE643283
54Valve-Vacuator94-1414
55Pipe Plug285-17
6Hex Hd. Capscrew322-5
7Washer3256-23
8Bracket-Mounting, Air Cleaner95-5806
9MUTTER3296-29
10Guard-Flywheel95-3891-03
11Capscrew321-4
12Lockwasher3253-3
13Brkt-Clutch Anchor95-4067-03
14MUTTER3296-42
15Bumper-Rubber240-14
16Washer3256-22
17SCHRAUBE12-5450
18Bracket-Relay95-4239-03
19Heat Shield Wa98-1634-03
20Nut-Speed107069
21Heat Shield Wa98-1638-03
22Carriage Bolt3229-1
23Muffler94-7958
24Lock Nut32152-4
25Temp. Sender, Ds94-7621
26Locknut3296-8
27Capscrew322-6
28Screw-Hex Hd.321-6
29Hose Clamp2412-130
