back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73546
>
8900001
>

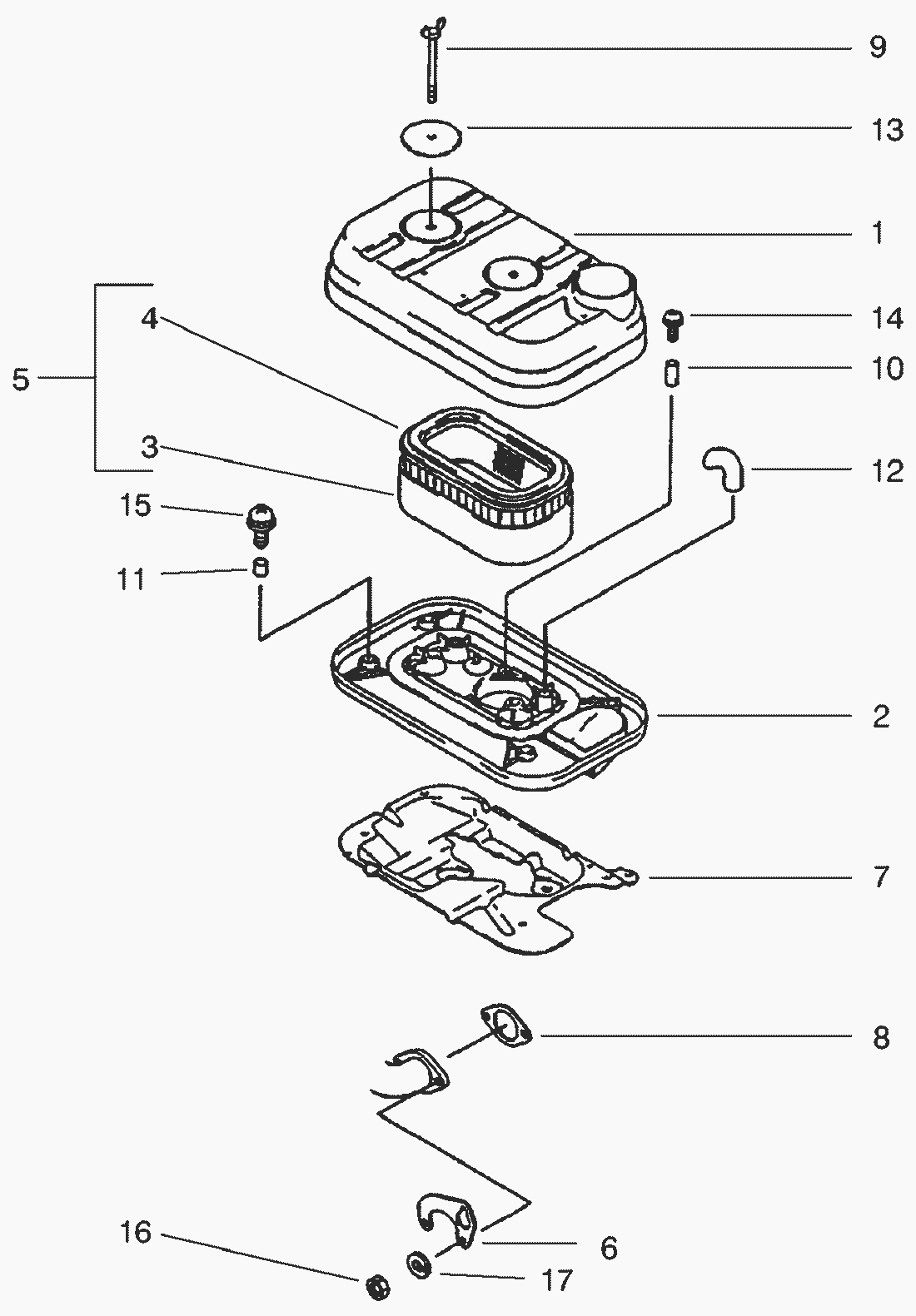

Air Cleaner Assy.
Spare Parts Lists for Toro Roth / TORO Air Cleaner Assy.
pos.
decription
spare part number
1
Case-Air Filter
95-9896
2
Case-Air Filter
95-9897
3
Element-Air Filter
95-9898
4
Element-Air Filter
95-9899
5
Element-Air Filter ASM
95-9950
6
Bracket
95-9951
7
Bracket
95-9952
8
Gasket
95-9953
9
Bolt
Kw10185
10
Collar
95-9954
11
Collar
95-9955
12
Tube
95-9956
13
Washer
95-9957
14
Screw-Pan-Wsp
95-9958
15
Screw-Pan-Wsp
95-9959
16
Nut-Hex M6
33013-00
17
Washer-Spring
93-8655
