> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Electrical Assy.

Spare Parts Lists for Toro Roth / TORO Electrical Assy.

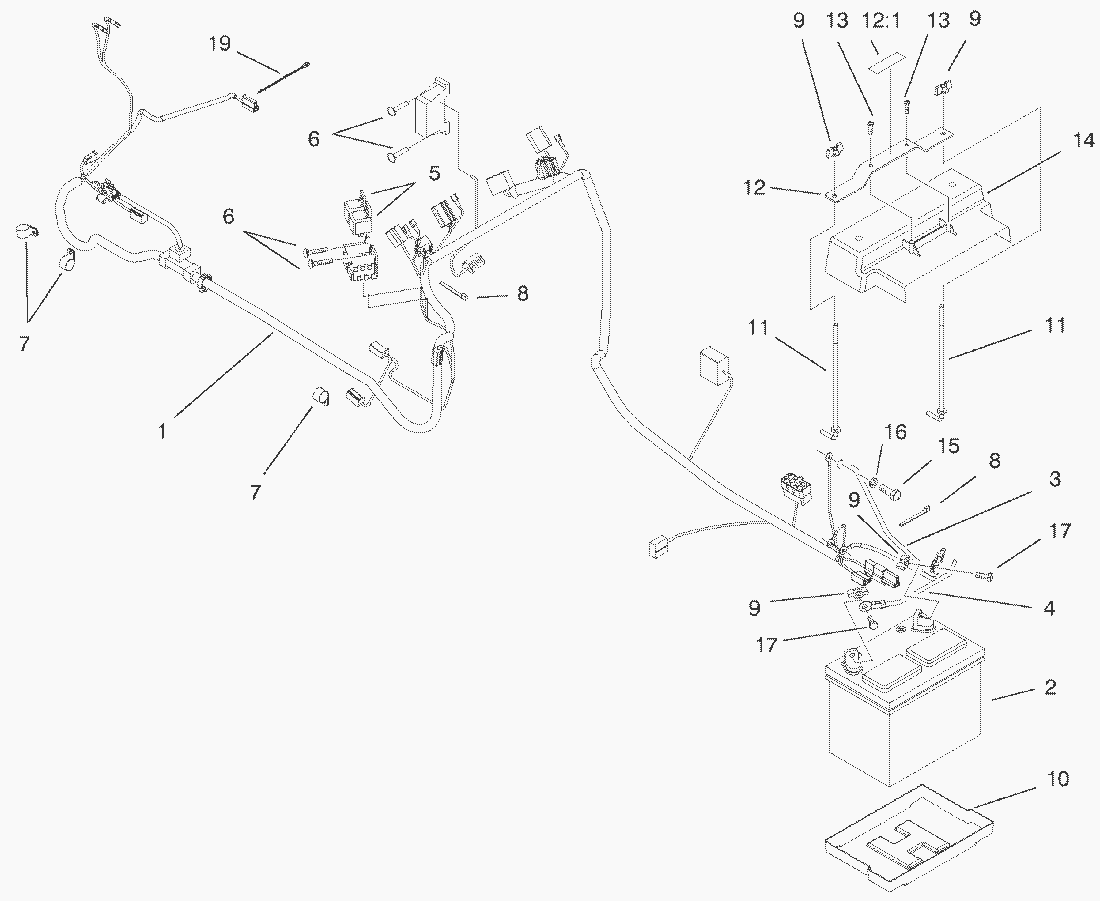

spare parts list


pos.decriptionspare part number
1Harness-Main94-7605
2Battery (Only On: 72103)94-1867
3Cable-Battery95-7855
4Cable-Battery98-5011
5Relay (Only On: 73470)98-7249
6SCHRAUBE12-5450
7Clamp-R98-2358
8Tie Strap614249
9Nut-Wing32103-22
10Tray-Battery106948
11Hold Down-Battery (Only On: 73470)95-4042
12Strap ASM (Only On: 73470)98-5056
121Decal-Hot, Model 3859093-1265
13Screw94-4496
14Shield-Battery (Only On: 73470)95-4044
14Shield-Battery (Only On: 73546)95-4092
15Hex Screw323-4
16Washer-Lock3253-21
17Capscrew321-4
19Tie-Cable (Only On: 73470)98-5072
Fuse-10A218-578
Fuse-25 Amp.109102
Fuse-30 Amp.NN10277
