> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Power Steering and Tilt Assy.

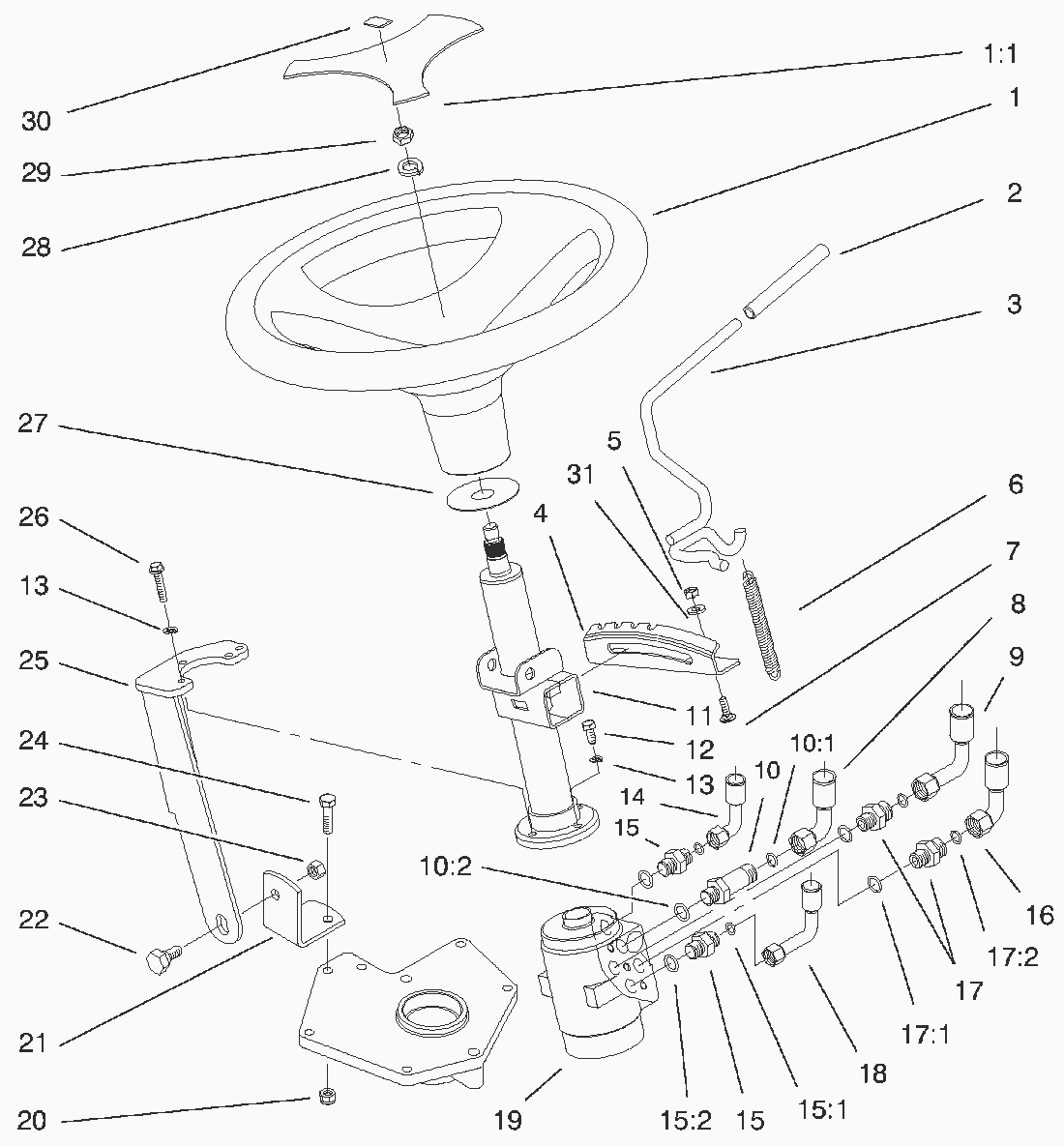

Spare Parts Lists for Toro Roth / TORO Power Steering and Tilt Assy.




spare parts list


pos.decriptionspare part number
1Steering Wheel ASM (Only On: 73540, 73541)98-1474
11Cover ASM (Incl. Ref.98-7211
2Cap-Rod92-6798
3Lever-Tilt95-3964
4Bracket94-2382
5MUTTER3296-42
6Spring95-3805
7Carriage Bolt3229-1
8Hose ASM94-7947
9Hose ASM94-7949
10Fitting-Hydraulic Long95-4137
101O-Ring237-42
102O-Ring237-22
11Power Column ASM94-2451
12Screw-HHF33103-020
13Washer-Lock48-8020
14Hose ASM94-7948
15Fitting-Hydraulic Straight95-4139
151O-Ring237-42
152O-Ring237-21
16Hose ASM95-3807
17Fitting-Hydraulic95-4138
171O-Ring237-22
172O-Ring237-42
18Hose ASM94-7946
19Control Unit94-7567
20MUTTER3296-29
21Bracket-Pivot94-7599-03
22Bolt-Shoulder94-7582
23Nut-Lock108881
24Capscrew322-6
25Power Streering Pivot94-7521-03
26Screw-HHF33103-025
27Washer-Boot94-2025
28Lockwasher69-8420
29Nut-HH Jam95-4182
30Decal98-1459
31Washer3256-22
32Tie Strap614249
