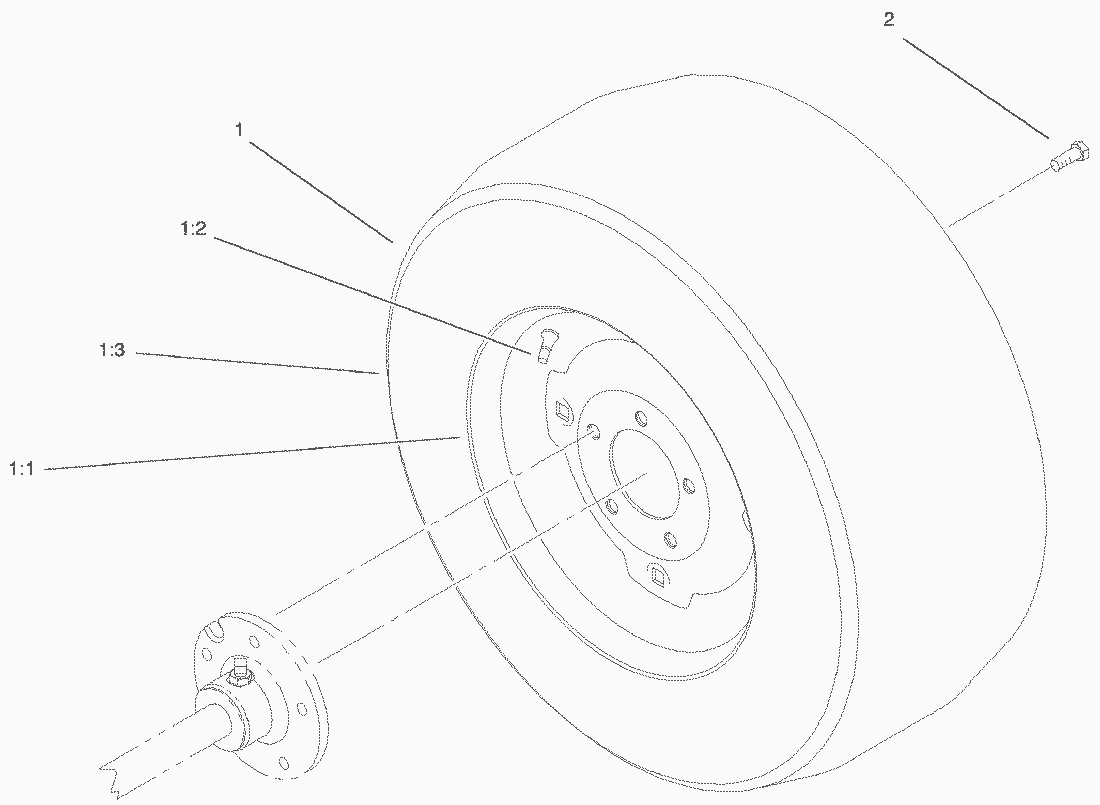

Wheel Assy.
Spare Parts Lists for Toro Roth / TORO Wheel Assy.
pos.
decription
spare part number
1
Rear Wheel & Tire ASM (Only On: 73470, 73540)
94-2194
1
Rear Wheel & Tire ASM (Only On: 73541)
95-4086
11
Tire (Only On: 73470, 73540)
94-2193
11
Tire (Only On: 73541)
95-4087
12
Valve Stem
5108
13
Wheel
110680
2
Bolt-Lug
83-2720
Tube
7007
