> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Liquid Cooled GAS Engine Assy. (Cont.)

Spare Parts Lists for Toro Roth / TORO Liquid Cooled GAS Engine Assy. (Cont.)

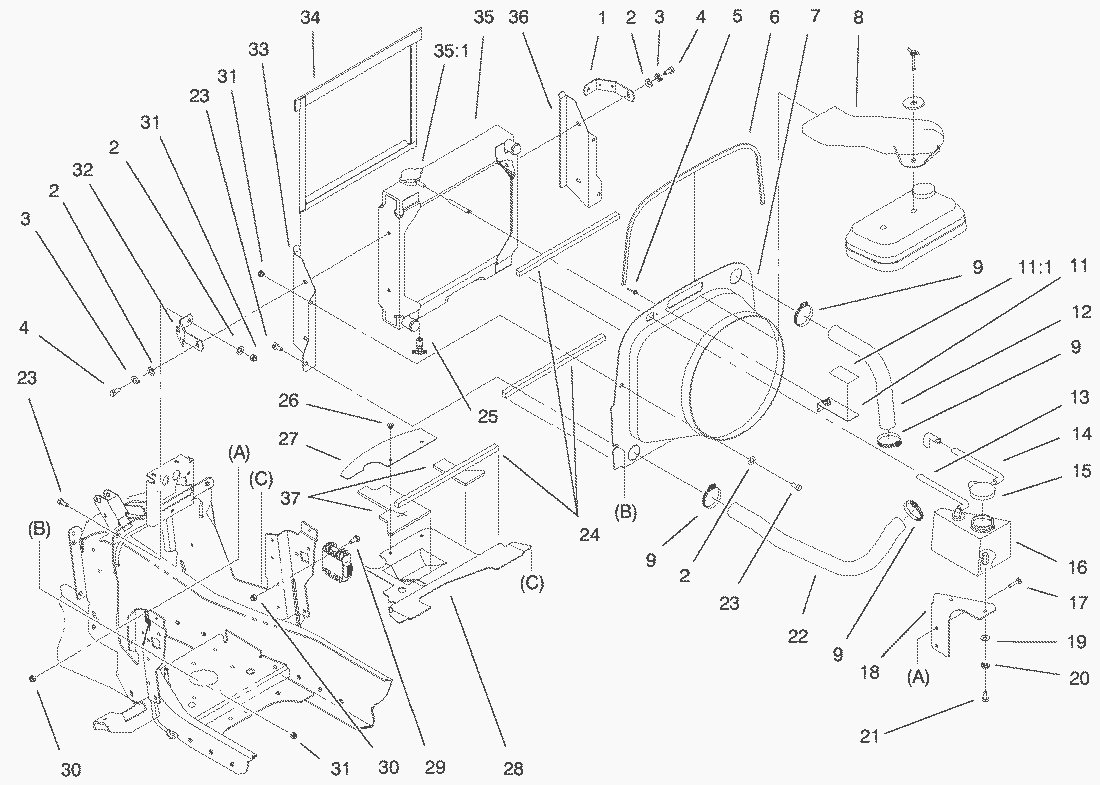

spare parts list


pos.decriptionspare part number
1Strap-Radiator94-7644-03
2Washer3256-23
3Lockwasher3253-4
4Hex Hd. Capscrew322-2
5Rivet-Pop3269-12
6Trim-Loc98-7216
7Shroud-Fan94-7911
8Duct-Air94-7891
9Clamp-Hose95-4271
11Bracket ASM98-5024
111Decal-Warning95-4143
12Hose-Radiator95-4268
13Hose-Gas Line Long62-2470
14Hose-Overflow95-4227
15Cap-Coolant95-4191
16Bottle-Overflow95-4017
17Carriage Bolt3229-1
18Bracket-Bottle95-4080-03
19Washer3256-22
20Lockwasher3253-3
21SCHRAUBE321-3
22Hose-Radiator95-4269
23Hex Hd. Capscrew322-5
24Foam-Radiator95-4161
25Valve-Drain95-4142
26Rivet-Plastic95-4237
27Baffle-Tower Rear95-4170
28Baffle-Tower94-7956
29Screw-Hex Hd.321-8
30Locknut3296-8
31MUTTER3296-29
32Bracket-Relay98-3590-03
33Support-Radiator RH94-7645-03
34Screen-Chaff98-1643-03
35Radiator94-7601
351Cap-Radiator93-5957
36Support-Radiator LH94-7646-03
37Foam-Baffle98-5026
