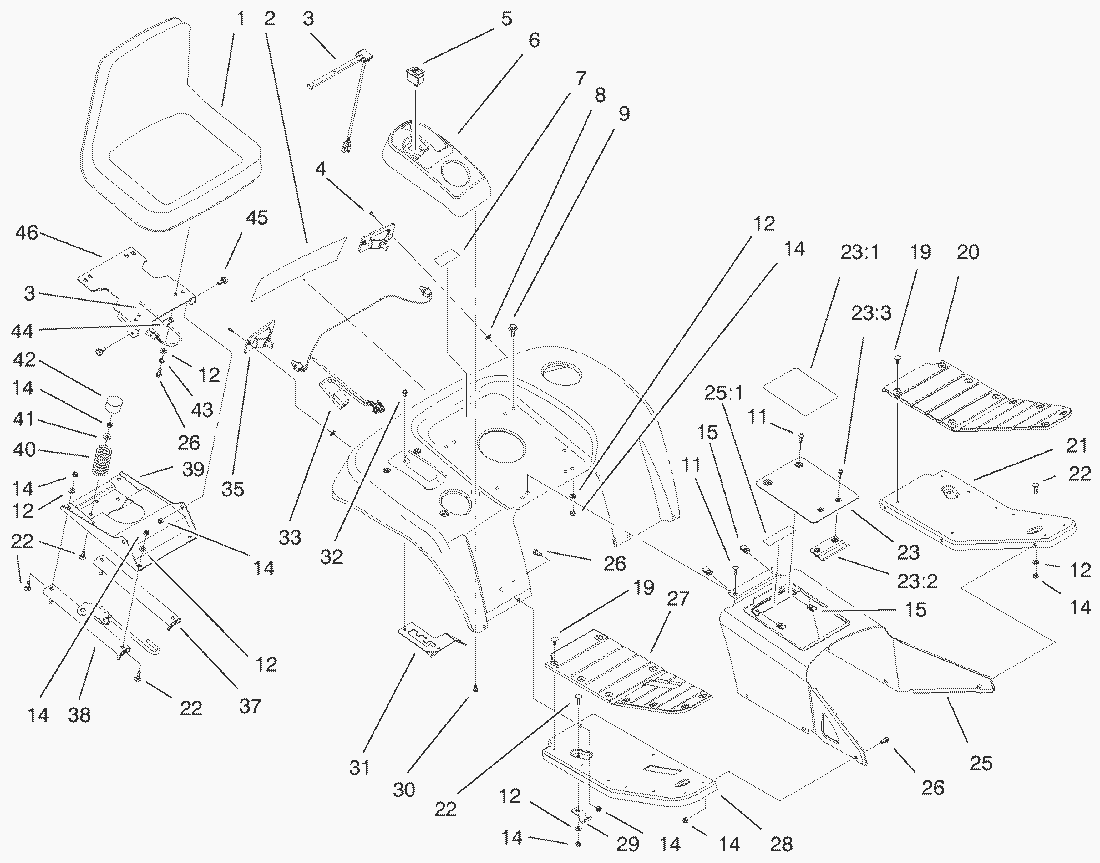

Spare Parts Lists for Toro Roth / TORO Fender, Footrest and Seat Assy. (Cont.)

pos.	decription	spare part number
38	Seat Slide-Latch	94-2177
39	Base-Seat	94-2107-03
40	Spring-Compression	94-2106-03
41	Bushing	105503
42	Cap-Seat Spring	95-4242
43	Lockwasher	3253-4
44	Clamp-R	98-2390
45	Bolt-Shoulder	37-8771
46	Mount-Seat	94-2111-03
