> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Crankcase Assy.

Spare Parts Lists for Toro Roth / TORO Crankcase Assy.

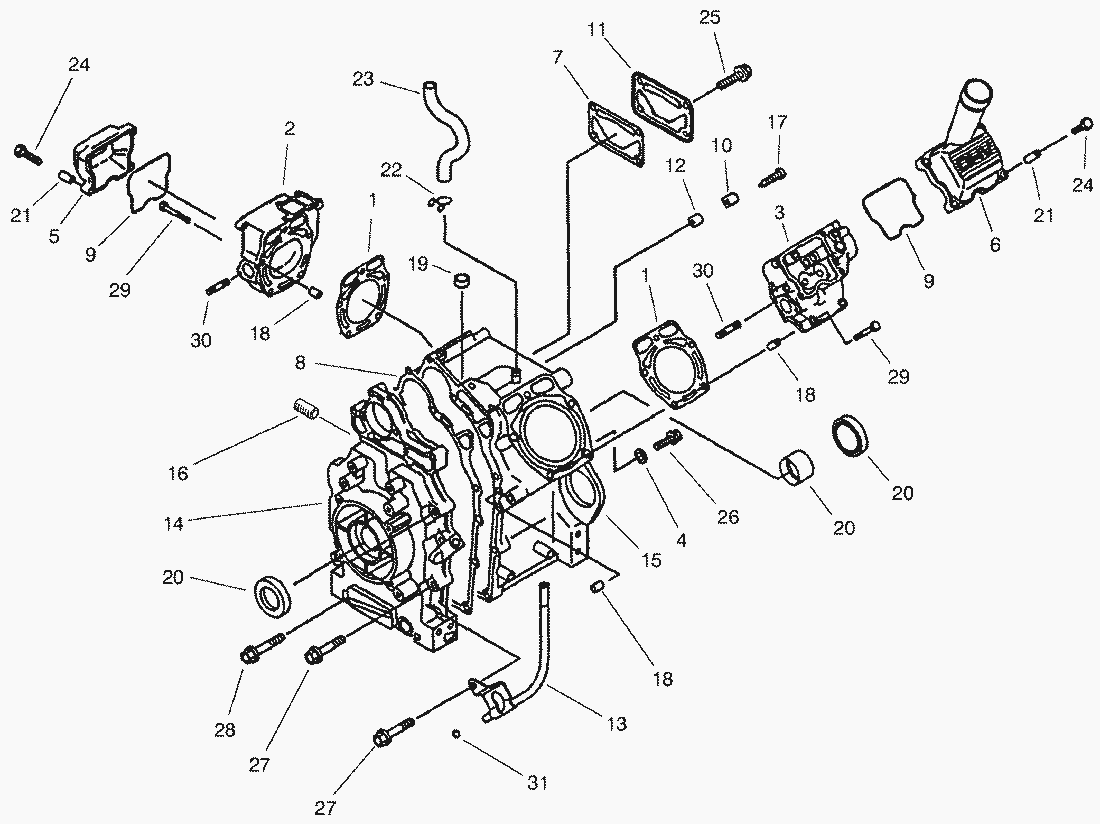

spare parts list


pos.decriptionspare part number
1Gasket-Head95-9700
2Head-Cylinder95-9701
3Head-Cylinder95-9702
4Gasket95-9703
5Cover-Rocker95-9704
6Cover-Rocker95-9705
7Gasket-Breather95-9706
8Gasket-Crankcase Cover95-9707
9Gasket-Rocker Cover95-9708
10Plate95-9709
11Cover95-9710
12Valve95-9711
13Pipe-Oil Level98-7369
14Cover-Crankcase95-9713
15Crankcase Assembly95-9714
16Joint95-9715
17Screw95-9716
18Pin93-8512
19Seal-OilKw10227
20Seal-Oil95-9717
21Collar95-9719
22Clamp95-9720
23Tube95-9721
24Bolt-Flanged93-8548
25Bolt-Flanged93-8679
26Bolt-Flanged95-9722
27Bolt-FlangedKw10035
28Bolt-Flanged95-9723
29Bolt-Flanged95-9724
30Bolt-Stud95-9725
31Seal-O-Ring95-9726
