back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73546
>
8900001
>

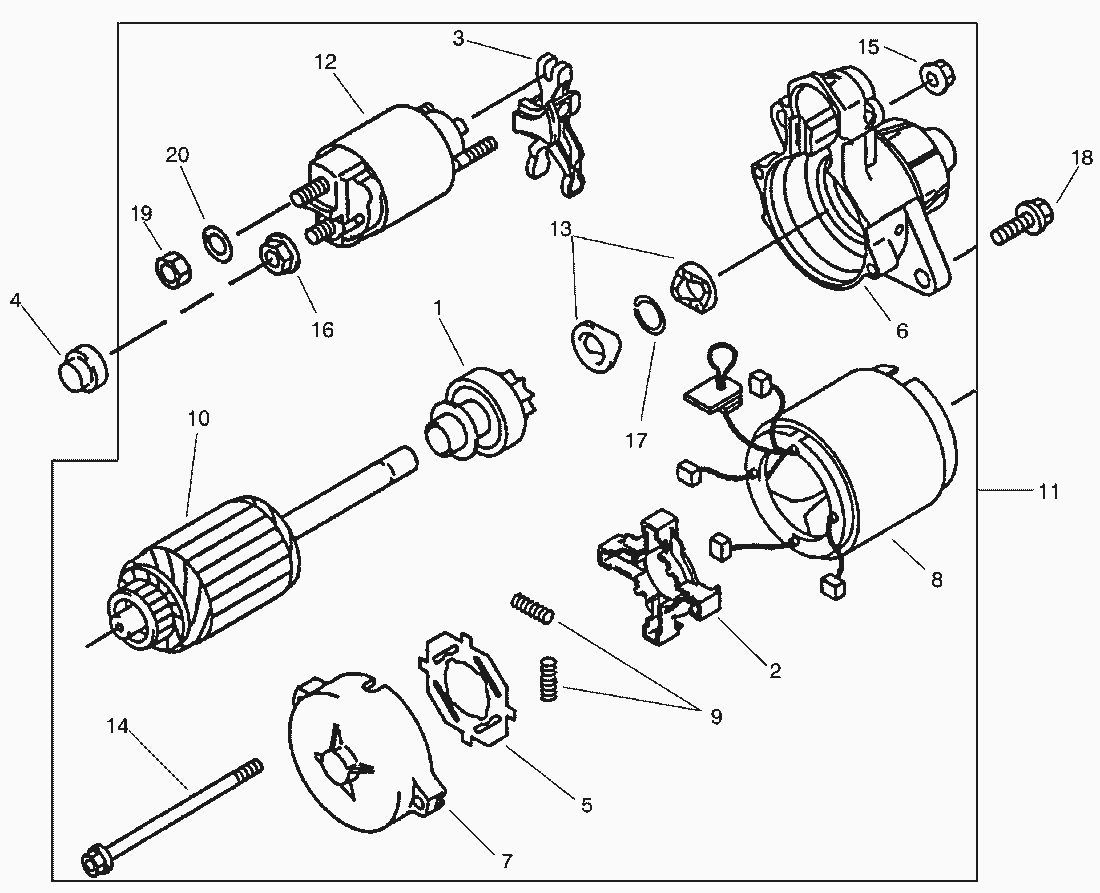

Starter Assy.
Spare Parts Lists for Toro Roth / TORO Starter Assy.
pos.
decription
spare part number
1
Clutch ASM
95-9961
2
Holder
Kw10048
3
Lever
Kw10051
4
Cover
95-9963
5
Insulator
Kw10073
6
Cover-ASM
95-9964
7
Cover-ASM
95-9965
8
Brush
Kw10081
9
Spring-Brush
Kw10082
10
Armature
Kw10084
11
Starter-Electric
95-9966
12
Switch
Kw10098
13
Stopper
95-9967
14
Bolt
Kw10190
15
Nut
Kw10197
16
Nut
Kw10198
17
Ring-Snap
Kw10219
18
Bolt-Flanged
Kw10031
19
Nut-Hex-Small
95-9968
20
Washer-Spring
Kw10143
