> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Attach A Matic and Hitch Assy.

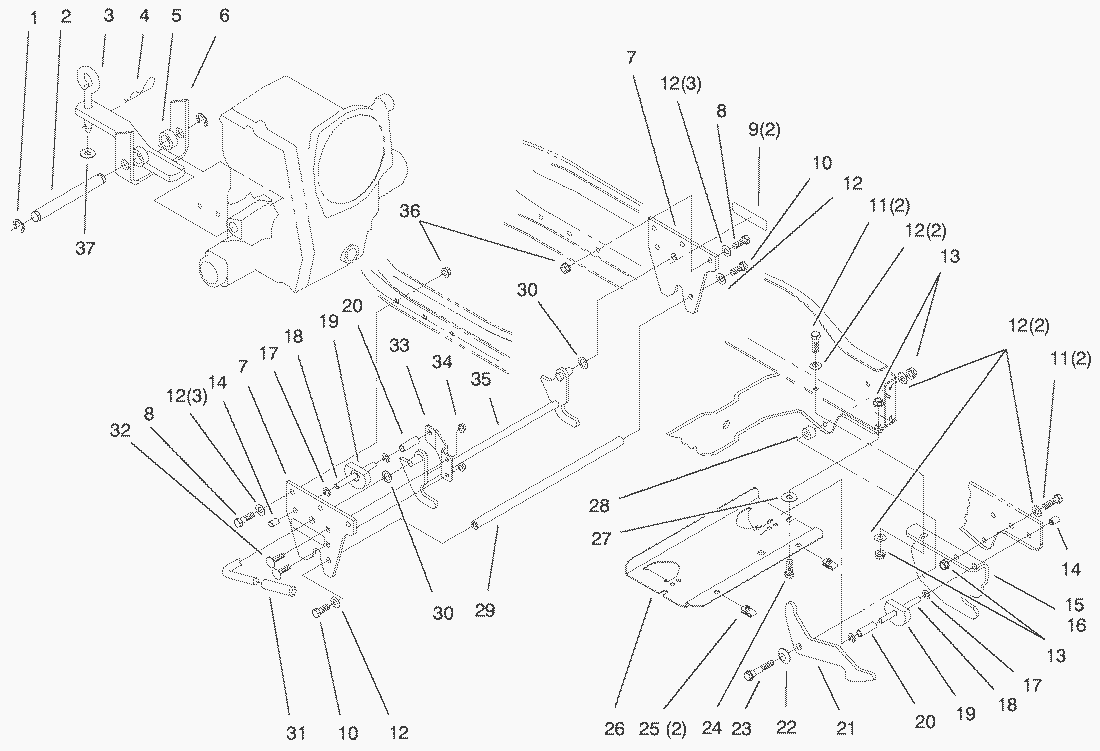

Spare Parts Lists for Toro Roth / TORO Attach A Matic and Hitch Assy.




spare parts list


pos.decriptionspare part number
1Ring-Retaining5618
2Pin-Hitch105269
3Tool Pin106634
4Hairpin9335054
5Spacer9791204
6Hitch ASM98-8083
7Plate-Hitch94-2251-03
8Screw-Cap Hex. Hd.323-44
9Decal-Attach A Matic98-1632
10Screw-HH3235-22
11Screw-Cap Hex Hd.323-7
12Flat Washer3256-24
13Locknut3296-39
14Cap-Rod, Plunger105316
15Hanger RH94-2230-03
16Hanger LH94-2231-03
17Ring-Retaining105797
18Rod-Lock94-2256
19Lock-Latch94-2258
20Spring-Compression8616
21Latch-Pulley Box94-7777-03
22Washer-Spring3290-221
23Bolt-Shoulder92-7674
24Capscrew323-6
25Nut-Speed107069
26Tray-Battery94-2304-03
27Washer-Thrust3-4685
28Spacer94-2233
29Rod-Spacer94-2475
30Washer98-1629
31Grip-Handle9038
32Carriage Bolt3230-2
33Mid Bracket ASM94-7855-03
34MUTTER3296-29
35Latch ASM94-2250-03
36Nut-Lock108881
37Washer3256-26
