Spare Parts Lists for Toro Roth / TORO Hydro Lift Lower Assy.

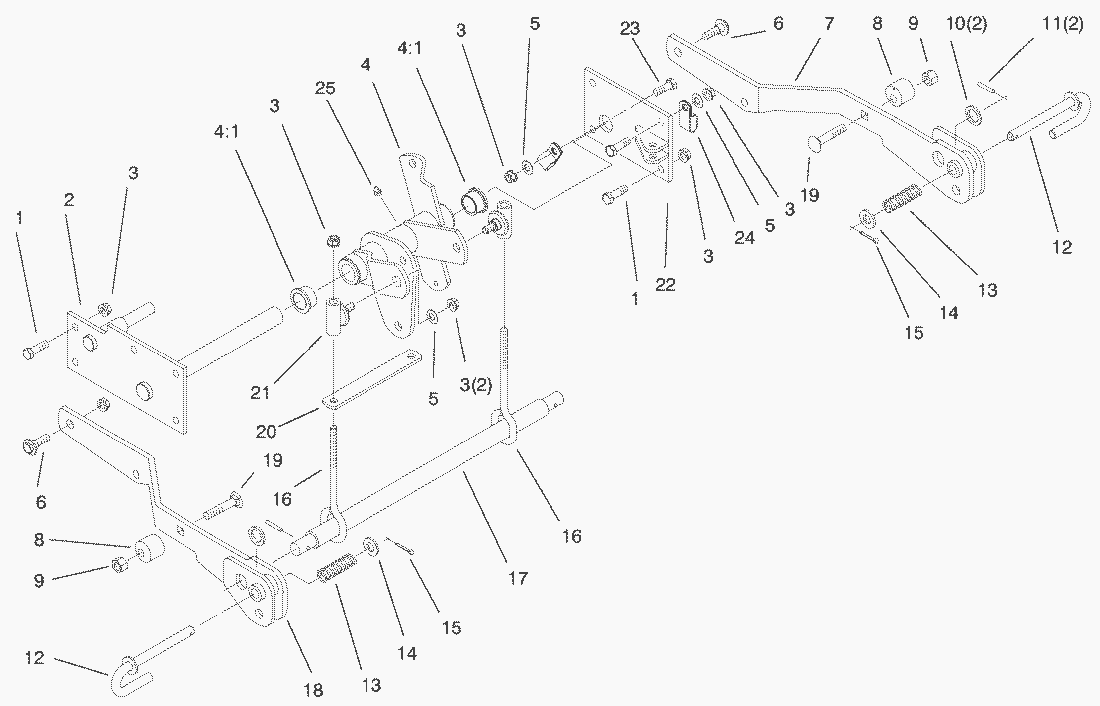

spare parts list


pos.decriptionspare part number
1Screw-Cap Hex Hd.323-7
2Support-Deck Lift94-2263-03
3Locknut3296-39
4Bellcrank & Bushing ASM98-3582
41Bushing-Flanged94-7574
5Flat Washer3256-24
6Bolt-Shoulder614672
7Lift Arm ASM-LH94-2279-03
8Stop-Lift Adj.94-2411
9Locknut3296-48
10Washer3256-28
11Roll Pin32121-79
12J Pin94-2301
13Spring-Compression95-4256
14Washer3256-26
15Pin-Cotter3272-10
16Rod-Lift94-2262
17Bar-Lift94-2277-03
18Lift Arm ASM-RH94-2278-03
19Screw-CARR3232-5
20Spacer-Strap94-7600-03
21Lift Sleeve ASM94-2260
22Support-Cylinder94-2266-03
23Screw-HH323-18
24Clamp-Tube (Only On: 73551, 73550)98-1617
25Grease Fitting302-5
