> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Hood & HeadLight Assy.

Spare Parts Lists for Toro Roth / TORO Hood & HeadLight Assy.




pos.decriptionspare part number
98-7210
98-7204

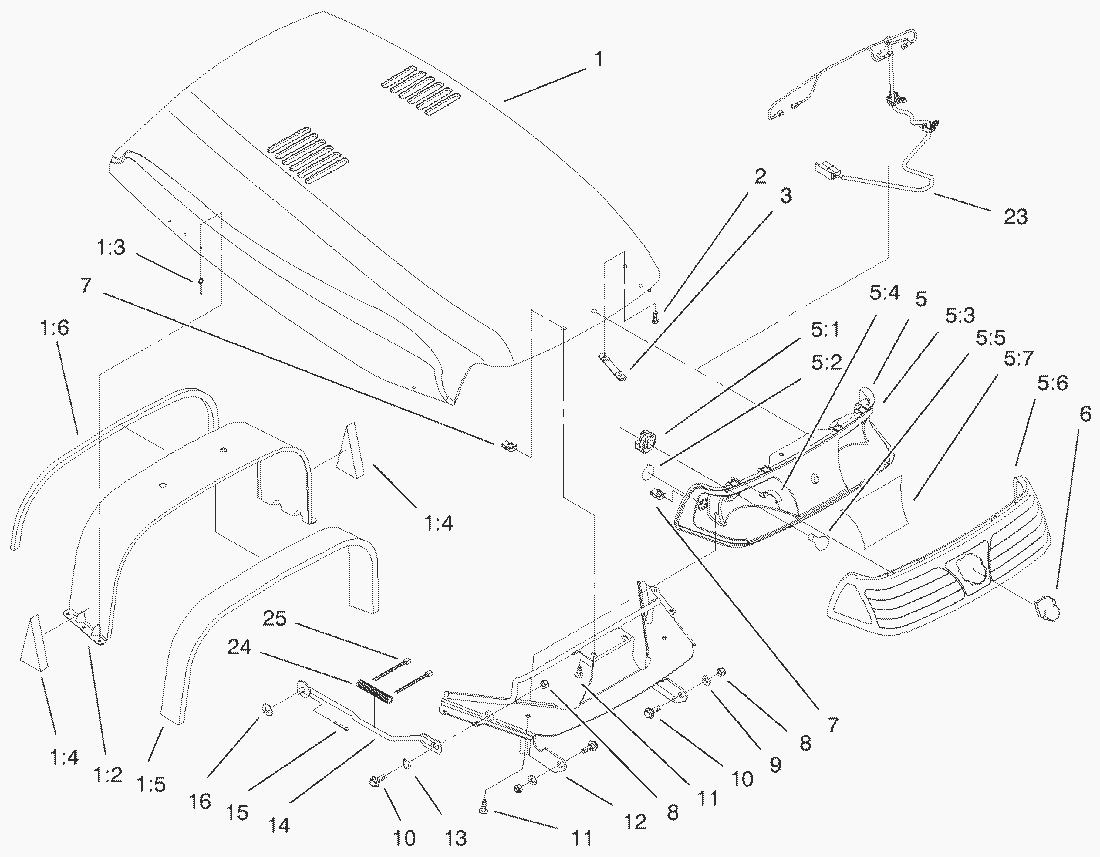

spare parts list


pos.decriptionspare part number
1Hood ASM98-7205
13Rivet-Pop3269-12
14Foam-Lower Bulkhead95-4259
15Foam Seal-Rear Bulkhead95-4078
16Foam-Bulkhead/Hood95-4233
2Screw-Button Hd.3274-31
3Nut Plate95-4197
5Headlight ASM95-4166
51Socket98-3591
52Decal-Sidelight98-1602
54Clip95-4129
55Light Bulb7228
56Lens-Headlight94-2099
57Decal-Headlight Reflector98-3597
6Logo-Headlight95-4248
7Nut-Speed107069
8MUTTER3296-29
9Washer3256-23
10Shoulder Screw27-0410
11Screw-TTH92-7020
12Front Bulkhead95-3800-03
13Washer-Spring98-1649
14Hood Support Rod95-4070-03
15Pin-Cotter3272-10
16Washer-Plastic98-3051
23Harness-Wire95-0691
24Shield-Support Rod98-3595
25Tie Strap614249
