back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73546
>
8900001
>

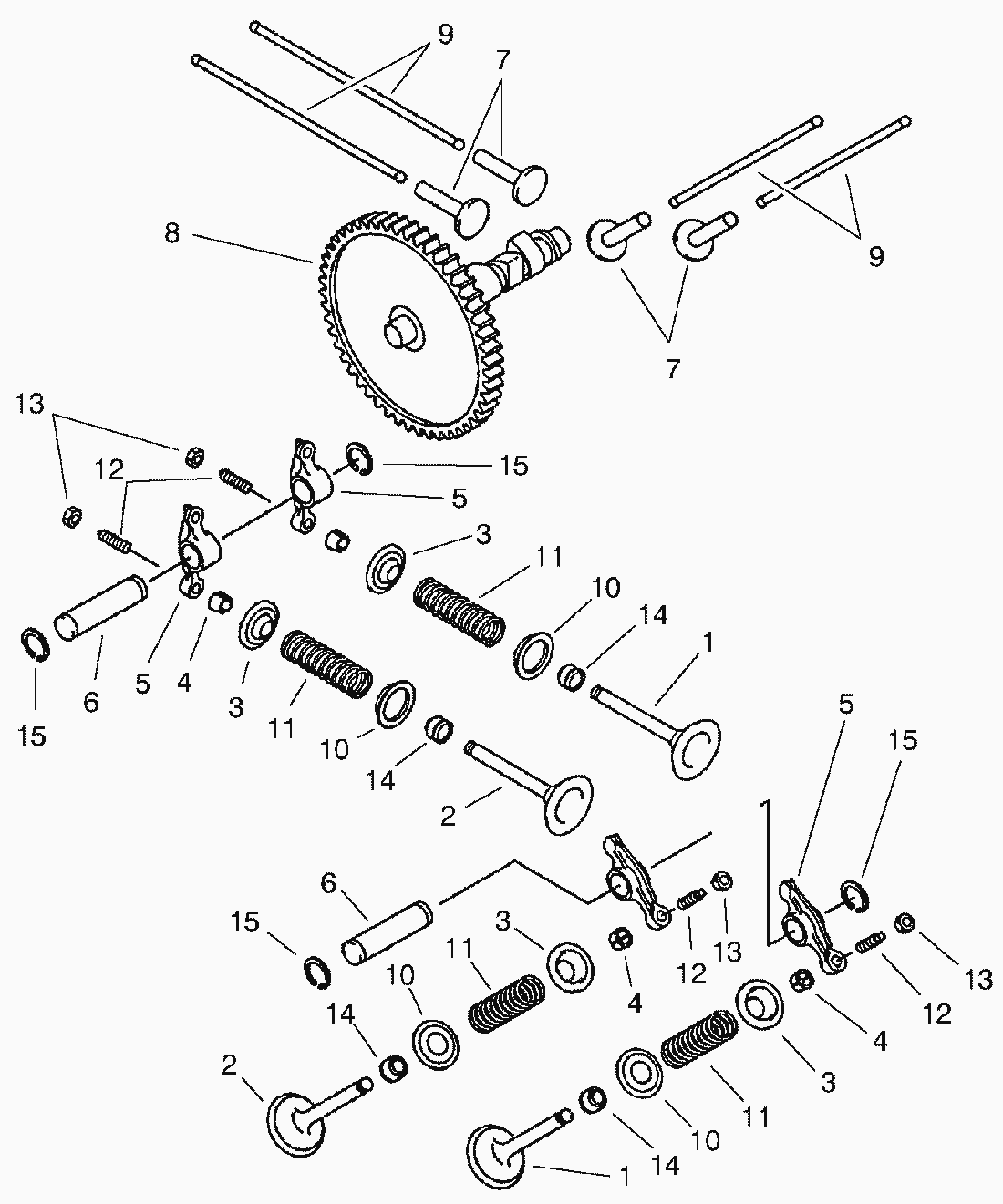

Valve/Camshaft Assy.
Spare Parts Lists for Toro Roth / TORO Valve/Camshaft Assy.
pos.
decription
spare part number
1
Valve-Intake
95-9741
2
Valve-Exhaust
95-9742
3
Retainer-Valve Spring
95-9743
4
Collet
95-9744
5
Arm-Rocker
95-9745
6
Shaft-Rocker
95-9746
7
Tappet
93-8539
8
Camshaft-Valve
95-9747
9
Rod-Push
95-9748
10
Retainer-Spring
95-9749
11
Spring-Valve
95-9750
12
Screw-Adjustment
95-9751
13
Nut
95-9752
14
Seal-Oil
95-9753
15
Circlip
95-9754
