Spare Parts Lists for Toro Roth / TORO Transmission Assy.

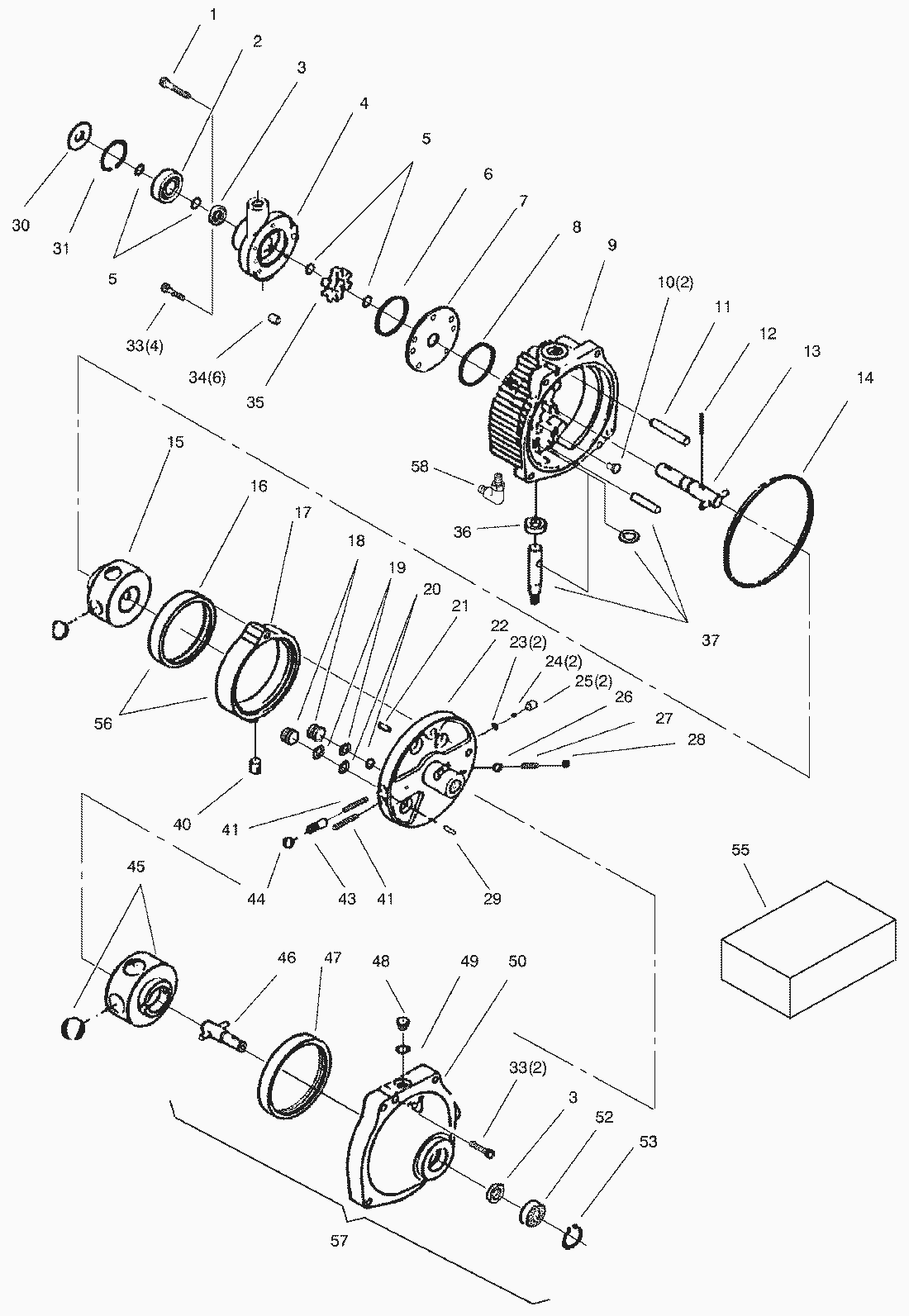

spare parts list

pos.	decription	spare part number
1	Screw-HH	56-2800
2	Bearing-Ball	56-2810
3	Seal-Oil	56-2820
4	ASM-Pump	98-7377
5	Ring-Retaining	56-3090
6	Ring-Seal	56-2850
7	Plate-Pump	56-2860
8	Ring-Seal	56-2870
9	Cover ASM	112641
10	Button	56-2880
11	Pin-Dowel	56-2890
12	Pin-Drive	56-2900
13	Shaft-Input	56-2910
14	Ring-Seal	56-2920
15	Rotor/Ball-Pump	56-2930
16	Race-Pump	113136
17	Ring-Cam	93-9810
18	Piston	56-2950
19	Ring-Backup	56-2960
20	O-Ring	56-2970
21	Pin-Coil	56-2980
22	Pintle ASM	56-2990
23	Ring-Retaining	56-3000
24	Ball-.313 Dia	56-3010
25	Body-Valve	56-3020
26	Ball-.438 Dia	56-3030
27	Spring-Valve	56-3040
28	Plug-Valve	56-3050
29	Pin-Dowel	56-3060
30	Shield-Grass	112652
31	Ring-Retaining	112653
33	Screw-HSBH	56-3100
34	Roller	56-3110
35	Carrier	56-3120
36	Seal-Oil	56-3130
37	Kit-Shaft	56-3140
40	Insert-Ring	56-3170
41	Spring-Valve	56-3180
43	Body-Valve	56-3200
44	Ball-.625 Dia	56-3210
45	Rotor/Ball-Motor	56-3220
46	Shaft-Output	56-3230
47	Race-Motor	56-3240
48	ASM-Plug	56-3250
49	O-Ring	56-3260
50	Body	98-7379
52	Bearing-Ball	56-3280
53	Ring-Retaining	56-3290
55	Kit-Seal	56-3310
56	Cam Ring ASM Incl 16 17	56-2940
57	ASM-Body	98-7380
58	Fitting-90 Bent Tube	98-7378
