> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Tie Rods, Spindle & Front Axle Assy.

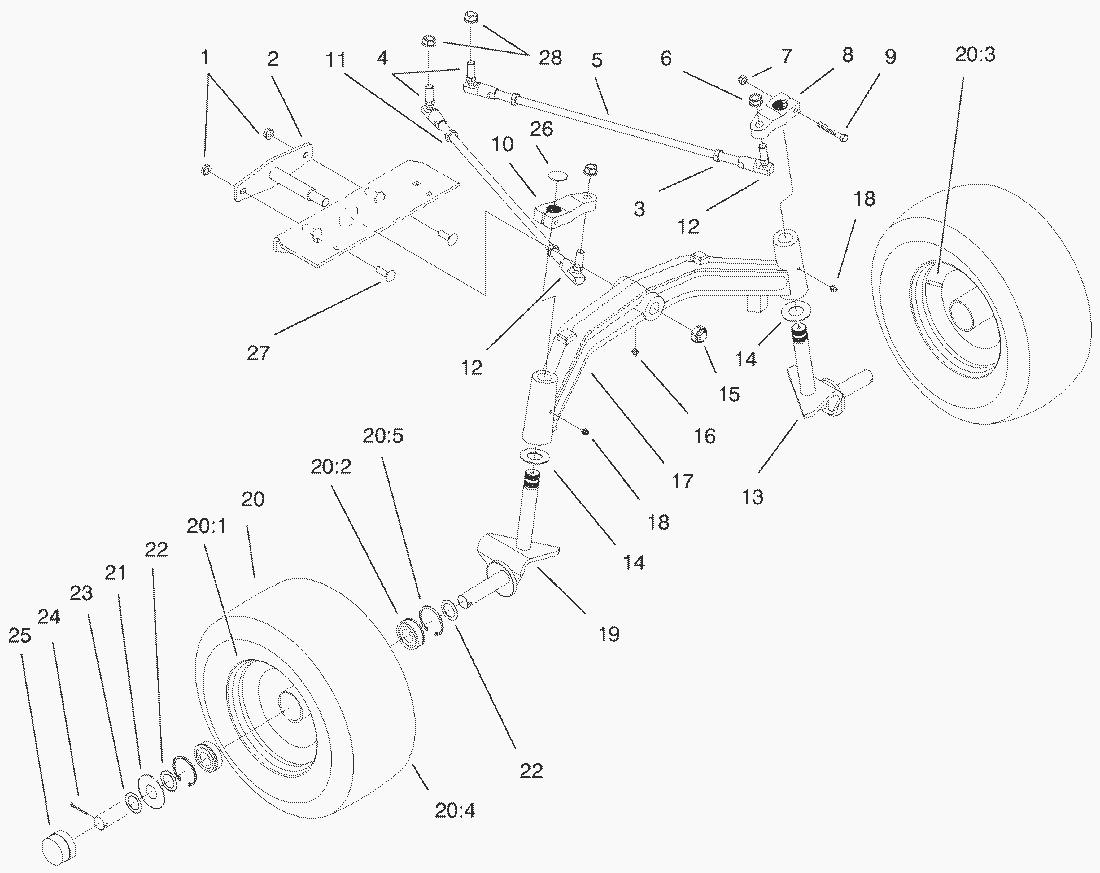

Spare Parts Lists for Toro Roth / TORO Tie Rods, Spindle & Front Axle Assy.




spare parts list


pos.decriptionspare part number
1Locknut3296-39
2Pivot Pin94-2205-03
3Hex Jam Nut3220-5
4Balljoint-LH Thread (Only On: 73540, 73541)94-7539
5Rod-Steering94-2212
6Nut-Lock98-8088
7MUTTER3296-29
8Arm-LH Steering94-2197
9Screw-HH322-32
10Arm-RH Steering94-2196
11Nut-Hex3220-12
12Balljoint-RH Thread (Only On: 73540, 73541)98-8086
13LH Spindle94-7537-03
14Washer-Thrust9548
15Nut-Hex3296-61
16Fitting-Grease302-11
17Axle-Front94-7568-03
18Grease Fitting302-5
19RH Spindle94-7536-03
20Wheel & Tire ASM (Only On: 73470, 73540)94-7542
20Wheel & Tire ASM (Only On: 73541)95-4084
201Wheel94-7541
202Bearing ASM (Incl. Ref.94-7538
203Valve Stem5108
204Tire (Only On: 73470, 73540)94-2191
204Tire (Only On: 73541)95-4085
205Snap Ring94-2053
21Washer-Wheel95-4060
22Washer-Flat9202514
23Washer9202524
24Pin-Cotter3272-18
25Cap-Dust94-7871
26Cap-Spindle98-1642
27Carriage Bolt3231-25
28Nut-Lock98-8089
Tube-Inner112819
