> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73546 > 8900001 > Smart Turn Rear Assy.

Spare Parts Lists for Toro Roth / TORO Smart Turn Rear Assy.

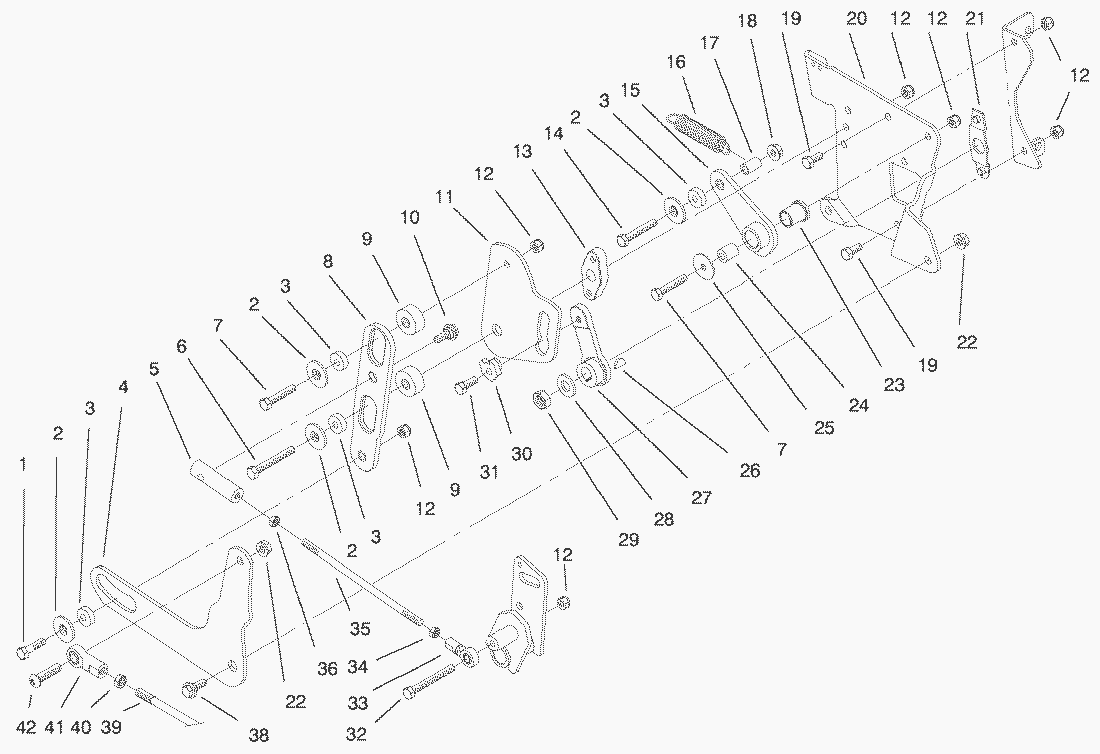

spare parts list


pos.decriptionspare part number
1Capscrew322-6
2Retainer-Bearing94-2313
3Bearing-Ball95-4185
4Slider Lift95-3801-03
5Rod End RH94-7637
6Screw-Cap Hex. Hd.322-12
7Capscrew322-9
8Slider-Speed Control94-2144
9Standoff-Cam94-2169
10Bolt-Shoulder94-7817
11Plate-Cam94-2145
12MUTTER3296-29
13Standoff-Slider94-2168
14Capscrew322-10
15Arm-Return To Neutral94-7586
16Spring-Extension63-1590
17Standoff-Spring94-2309
18Nut-Flange32128-30
19Capscrew322-3
20Plate-Control94-2149-03
21Locater-Control Plate94-7814
22Nut-Lock108881
23Bushing-Flange94-7913
24Spacer94-7564
25Washer-Flat3256-57
26Key3257-24
27Arm-Speed Control94-7816
28Washer3256-26
29Nut3296-45
30Cam-Eccentric94-2468
31Screw-Thread Locking95-4245
32Screw-Hex. Flange Hd.322-13
33Rod End LH94-7571
34Hex. Jam Nut3220-20
35Rod-Slider To Pivot94-2497
36Jam Nut3220-2
38Bolt-Shoulder94-7582
39Rod-Lift Lever94-7500
40Jam Nut3220-3
41Rod End (Only On: 72043, 72103, 72063, 72083)92-7008
42Screw-Button Head95-3857
